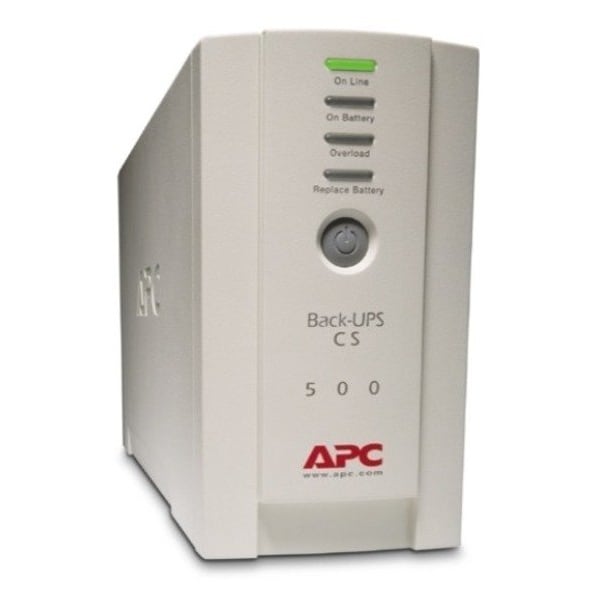

UPS, 500VA, Standby, Out: 230V In: 230V

  • Mfr # APWBK500

  • Zoro # G201863623


product price: $196.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Standby
Power Rating
500VA
Mounting
Tower
Wattage
300 W
Input Voltage
230V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
APWBK500
Zoro #
G201863623
UPC #
731304016304
Country of Origin
Philippines

Dimensions

Width
11.18 in
Depth
11.18 in
Height
6.5 in
Cord Length
6
Rack Height
0

Details

Item
UPS
UPS Type
Standby
Power Rating
500VA
Mounting
Tower
Wattage
300 W
Input Voltage
230V
Output Voltage
230V
Backup Time (Half/Full Load)
12 min 3 sec/5 min 43 sec
Number of Outlets
6
Housing Color
Beige
Battery Type
Lead Acid
NEMA Receptacle Configuration
(3) IEC 60320 C13;(1) IEC 60320 C13 surge; (2) IEC Jumpers
Typical recharge time
8
Surge Energy Rating
480
Approvals
California Energy Commission (CEC), cUL listed, ENERGY STAR V2.0 (USA), Industry Canada
Input Connection Type
NEMA 5-15P
Waveform type
Stepped approximation to a sinewave
Interface Port(s)
Optional Simple Signalling RS232 cable,USB
Mount Position
Front
Output Power Capacity, VA
500
Nominal Output Voltage
120V
Output Connections
6
Outlet Type
3 NEMA5-15R, 3 NEMA5-15Rsurge

Description

Protect your electronics with this 6-outlet, 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean, uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.
