  11. UPS System, 1.44kVA, Line Interactive, Out: 120V AC In: 120V AC

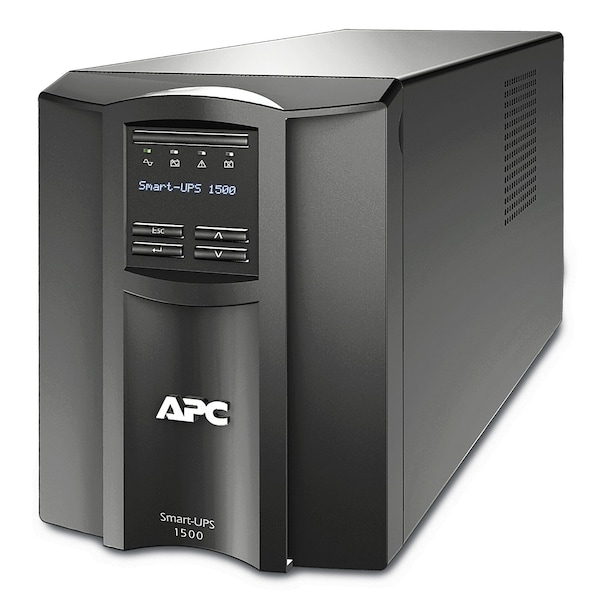

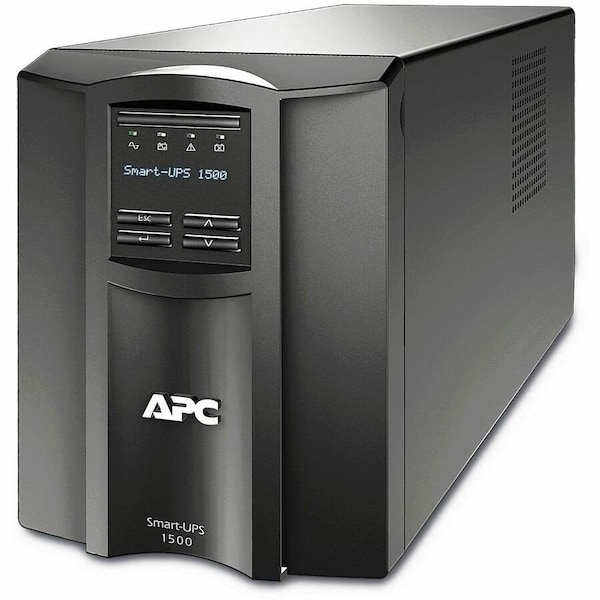

Apc UPS System, 1.44kVA, Line Interactive, Out: 120V AC In: 120V AC SMT1500C - main

UPS System, 1.44kVA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMT1500C

  • Zoro # G5105788

product price: $714.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
1.44 kVA
UPS Type
Line Interactive
Power Rating
1.44kVA
Mounting
Tower
Wattage
1 kW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMT1500C
Zoro #
G5105788
UPC #
731304268666
Country of Origin
Philippines

Dimensions

Depth
17 in
Cord Length
6 ft
Height
9 in
Width
17 in
Overall Depth
43.9 cm
Overall Height
21.9 cm
Overall Width
17.1 cm
Power Cord Length
6 ft

Details

VA Rating - UPS Systems
1.44 kVA
Item
UPS System
UPS Type
Line Interactive
Power Rating
1.44kVA
Mounting
Tower
Wattage
1 kW
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
23.1 min/6.5 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
8
Includes
Provided Equipment USB cable
Input Current
12 A
Hz
50/60 Hz ( +/-3 Hz)
NEMA Plug Configuration
5-15P
Fax/Modem Line Protection
No
Standards
cULus, ENERGY STAR V2.0 (USA), RoHS
Automatic Volts Regulation
Yes
Transfer Time
4 to 8 msec
Display Type
LCD
NEMA Receptacle Configuration
(8) 5-15R
Ports
RJ45 Serial, Smart Slot, USB
Phase
Single
Battery Type
Lead Acid
Housing Material
Steel
Housing Color
Black
Relative Humidity
0-95 %
Communication Port Support
SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Additional Specification
cloud-enabled monitoring
Software Package
SmartConnect software for remote power monitoring feature availability varies by terms of use
Rated Power In Va
1440 VA
Other Input Voltages
110 V || 125 V
Efficiency At Full Load
75...154 V adjustable || 82...144 V
Battery Life
3-5 year(s)
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Storage Altitude
0-50000 ft
Number Of Cables
1
Provided Equipment
Installation guide || USB cable
Online Thermal Dissipation
225 Btu/h
Kw Rating
1000 W
Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Operating Altitude
0...10000 ft
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Usb Compatible
Yes
Free Slots
1
Acoustic Level
45 dBA
Other Output Voltages
110 V || 125 V
Product Certifications
cULus || ENERGY STAR V2.0 (USA)
Control Panel
Multi-function LCD status and control console
Mounting Location
front
Ambient Air Temperature For Operation
0-40°C
Harmonic Distortion
Less than 5%
Ambient Air Temperature For Storage
-15-45°C
Power Rating - Apparent
1.5 kVA
Power Rating - Real
1 kW
Frequency
50/60 Hz
Transfer Time - Minimum
6 msec
Manufacturer Warranty
3 yr
Run Time - Full Load
6.5 min
Transfer Time - Maximum
10 msec
Output Ports Included
USB
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Surge Suppression Rating
680 J
External Battery Compatible
Not External Battery Pack Compatible
Replacement Battery Part Number
RBC7
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
104 Degrees F
Battery Chemistry
Valve Regulated Lead Acid
Receptacle Configuration
5-15R
Includes Battery
Battery Included
Plug Configuration
5-15P
Battery Recharge Time
3 hr
Audible Alarm Conditions
Low Battery
Battery Life - Minimum
3 yr
Input Current - Maximum
12 A
Number of Outlets - UPS
8

Description

UPS System, Line Interactive, Power Rating 1.44 kVA, Wattage 1 kW, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 23.1 min/6.5 min, Mounting Tower, Outlet Type UPS/Surge, Number of Outlets 8, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (8) 5-15R, NEMA Plug Configuration 5-15P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 4 to 8 msec, Width 7 in, Depth 17 in, Height 9 in, Cord Length 6 ft, Display Type LCD
