  11. UPS System, 2000VA, Line Interactive, Out: 120V AC In: 120V AC

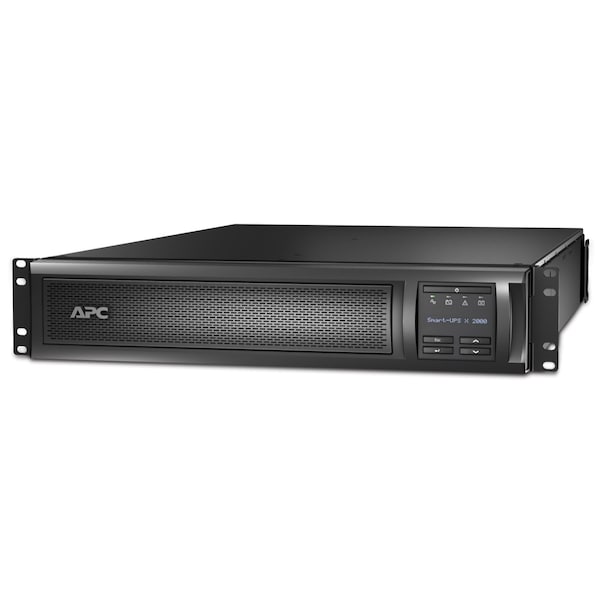

Apc UPS System, 2000VA, Line Interactive, Out: 120V AC In: 120V AC SMX2000RMLV2U - main

UPS System, 2000VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMX2000RMLV2U

  • Zoro # G5105882

product price: $1,873.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
1.92 kVA
UPS Type
Line Interactive
Power Rating
2000VA
Mounting
Rack/Tower
Wattage
1.8 kW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMX2000RMLV2U
Zoro #
G5105882
UPC #
731304268536
Country of Origin
Philippines

Dimensions

Cord Length
8 ft
Width
26 in
Height
3 in
Depth
26 in
Overall Height
8.5 cm
Overall Width
43.2 cm
Rack Height
2U
Power Cord Length
8 ft
Overall Depth
66.7 cm

Details

Item
UPS System
VA Rating - UPS Systems
1.92 kVA
UPS Type
Line Interactive
Power Rating
2000VA
Mounting
Rack/Tower
Wattage
1.8 kW
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
27.6 min/11 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
7
Includes
Rack Mounting Brackets, Rack Mounting Hardware, Rack Mounting Support Rails, Removable Support Feet, Smart UPS Signalling RS-232 Cable, USB Cable
Transfer Time
4 to 8 msec
NEMA Plug Configuration
5-20P
Standards
BSMI, CSA, NOM, RoHS, VCCI Class A
Display Type
LCD/LED
Hz
50/60 Hz ( +/-3 Hz)
Phase
Single
NEMA Receptacle Configuration
(1) L5-20R; (3) 5-15R; (3) 5-20R
Fax/Modem Line Protection
No
Automatic Volts Regulation
Yes
Input Current
16 A
Ports
EPO, RJ45 10/100Base-T, RJ45 Serial, Smart Slot, USB
Battery Type
Lead Acid
Housing Color
Black
Capacity - Batteries
1920 VA/1800 W
Housing Material
Steel
Control Panel
Multi-function LCD status and control console, LED status display with on line : on battery : replace battery and overload indicators
Battery Life
3-5 year(s)
Additional Specification
extended run
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Rated Power In Va
1920 VA
Product Certifications
BSMI || CSA || NOM || TUV || VCCI Class A
Ambient Air Temperature For Storage
-15-45°C
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Number Of Rack Unit
2U
Ambient Air Temperature For Operation
0-40°C
Kw Rating
1800 W
Other Input Voltages
100 V || 110 V || 127 V
Acoustic Level
55 dBA
Harmonic Distortion
Less than 5%
Mounting Location
front
Storage Altitude
0-50000 ft
Relative Humidity
0-95 %
Online Thermal Dissipation
203 Btu/h
Efficiency At Full Load
75...154 V adjustable || 70...153 V
Free Slots
1
Provided Equipment
CD with software || Documentation CD || Installation guide || Rack mounting hardware || Rack Mounting brackets || Rack Mounting support rails || Removable support feet || Smart UPS signalling RS-232 cable || USB cable
Number Of Cables
1
Operating Altitude
0...10000 ft
Usb Compatible
Yes
Other Output Voltages
100 V || 110 V || 127 V
Emergency Power OFF
Yes
Serial Port
Yes
Hot Swappable
Yes
Product Series
X
Package Contents
Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS , CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
USB
Yes
Surge Energy Rating
540 J
Battery Chemistry
Valve Regulated Lead Acid
Form Factor
Rack-mountable
Number of Battery & Surge Outlets
7
Load Capacity
1920 VA/1800 W
Waveform Type
Sine Wave
Total Number of Expansion Slots
1
Typical Battery Recharge Time
3 Hour
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
Manufacturer Warranty
3 yr
External Battery Pack Part Number
SMX120RMBP2U
Audible Alarm Conditions
Low Battery
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
104 Degrees F
Surge Suppression Rating
540 J
Run Time - Full Load
10.93 min
Number of Outlets - UPS
7
Includes Battery
Battery Included
Transfer Time - Minimum
4 msec
Plug Configuration
5-20P
Power Rating - Real
1.8 kW
External Battery Compatible
External Battery Pack Compatible
Transfer Time - Maximum
8 msec
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Frequency
50/60 Hz
Input Current - Maximum
16 A
Output Ports Included
RS-232, USB
Battery Life - Minimum
3 yr
Battery Recharge Time
3 hr
Power Rating - Apparent
2 kVA
Receptacle Configuration
5-15R, 5-20R, L5-20R
Replacement Battery Part Number
APCRBC117

Description

UPS System, Line Interactive, Power Rating 1.92 kVA, Wattage 1.8 kW, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 27.6 min/11 min, Mounting Rack/Tower, Outlet Type UPS/Surge, Number of Outlets 7, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (1) L5-20R, (3) 5-15R, (3) 5-20R, NEMA Plug Configuration 5-20P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 4 to 8 msec, Width 17 in, Depth 26 in, Height 3 in
