  11. UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC

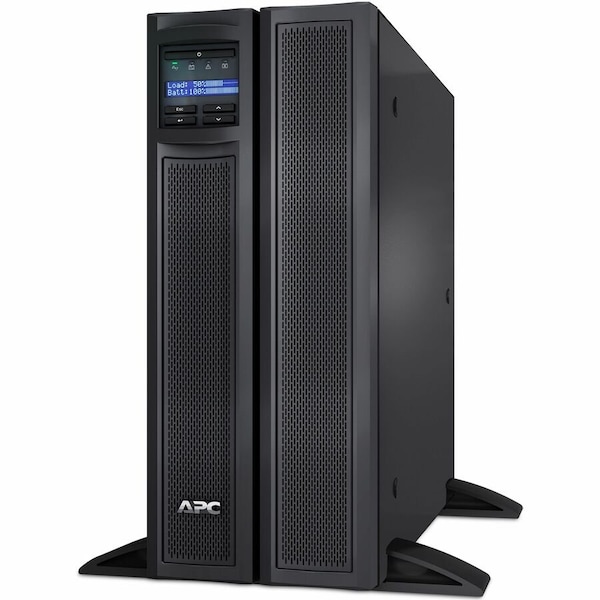

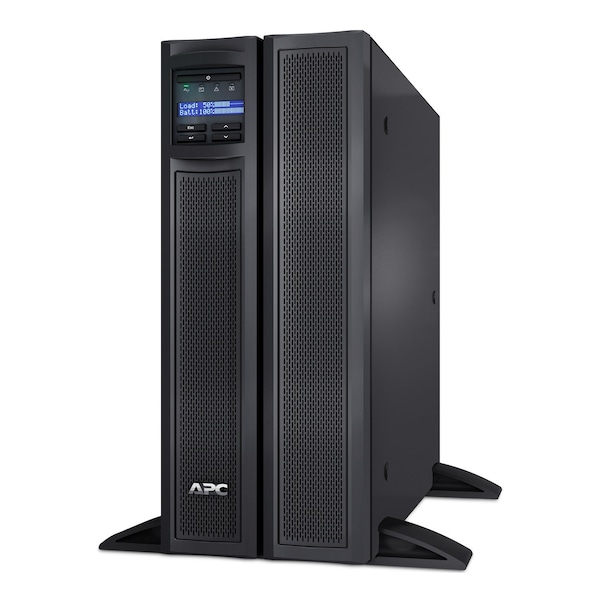

Apc UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC SMX3000LV - main

UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMX3000LV

  • Zoro # G5105928

product price: $2,174.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
2.88 kVA
UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack/Tower
Wattage
2.7 kW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMX3000LV
Zoro #
G5105928
UPC #
731304292647
Country of Origin
Philippines

Dimensions

Depth
19 in
Height
17 in
Width
19 in
Cord Length
8 ft
Overall Width
17.8 cm
Overall Height
43.2 cm
Rack Height
4U
Power Cord Length
8 ft
Overall Depth
48.3 cm

Details

Item
UPS System
VA Rating - UPS Systems
2.88 kVA
UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack/Tower
Wattage
2.7 kW
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
18 min/6.3 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
10
Display Type
LCD/LED
Standards
BSMI, CSA, NOM, RoHS, VCCI Class A
Transfer Time
4 to 8 msec
Input Current
24 A
NEMA Plug Configuration
L5-30P
NEMA Receptacle Configuration
(1) L5-30R; (3) 5-20R; (6) 5-15R
Phase
Single
Includes
Rack Mounting Brackets, Rack Mounting Hardware, Rack Mounting Support Rails, Removable Support Feet, Smart UPS Signalling RS-232 Cable, USB Cable
Fax/Modem Line Protection
No
Automatic Volts Regulation
Yes
Ports
EPO, RJ45 10/100Base-T, RJ45 Serial, Smart Slot, USB
Hz
50/60 Hz ( +/-3 Hz)
Battery Type
Sealed Lead Acid (SLA)
Housing Color
Black
Capacity - Batteries
2880 VA/2700 W
Housing Material
Steel
Number Of Rack Unit
4U
Storage Altitude
0-50000 ft
Online Thermal Dissipation
276 Btu/h
Kw Rating
2700 W
Efficiency At Full Load
70...153 V
Rated Power In Va
2880 VA
Harmonic Distortion
Less than 5%
Operating Altitude
0...10000 ft
Ambient Air Temperature For Storage
-15-45°C
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Free Slots
1
Battery Life
3-5 year(s)
Other Input Voltages
100 V || 110 V || 127 V
Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Usb Compatible
Yes
Relative Humidity
0-95 %
Other Output Voltages
100 V || 110 V || 127 V
Additional Specification
extended run
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Acoustic Level
55 dBA
Ambient Air Temperature For Operation
0-40°C
Number Of Cables
1
Control Panel
LED status display with on line : on battery : replace battery and overload indicators, Multi-function LCD status and control console
Product Certifications
BSMI || CSA || NOM || TUV || VCCI Class A
Provided Equipment
CD with software || Documentation CD || Installation guide || Rack mounting hardware || Rack Mounting brackets || Rack Mounting support rails || Removable support feet || Smart UPS signalling RS-232 cable || USB cable
Mounting Location
front
Total Number of Expansion Slots
1
Battery Characteristics
Spill-proof, Maintenance-free
Hot Swappable
Yes
Surge Energy Rating
540 J
Package Contents
Smart-UPS X 3000VA Rack/Tower LCD 100-127V , CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Waveform Type
Sine Wave
Number of Battery & Surge Outlets
10
Emergency Power OFF
Yes
Battery Chemistry
Valve Regulated Lead Acid
Form Factor
Rack-mountable
Number of Batteries
1
Typical Battery Recharge Time
3 Hour
USB
Yes
Load Capacity
2880 VA/2700 W
Battery Recharge Time
3 hr
External Battery Pack Part Number
SMX120BP
Power Rating - Apparent
3 kVA
Transfer Time - Maximum
8 msec
Power Rating - Real
2.7 kW
Input Current - Maximum
24 A
Battery Life - Minimum
3 yr
Number of Outlets - UPS
10
Surge Suppression Rating
540 J
Receptacle Configuration
5-15R, 5-20R, L5-20R
Audible Alarm Conditions
Low Battery
Includes Battery
Battery Included
Replacement Battery Part Number
APCRBC143
Transfer Time - Minimum
4 msec
Manufacturer Warranty
3 yr
Plug Configuration
L5-30P
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Operating Temperature - Minimum
32 Degrees F
Output Ports Included
RS-232, USB
Run Time - Full Load
6.25 min
Operating Temperature - Maximum
104 Degrees F
External Battery Compatible
External Battery Pack Compatible
Frequency
50/60 Hz

Description

UPS System, Line Interactive, Power Rating 2.88 kVA, Wattage 2.7 kW, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 18 min/6.3 min, Mounting Rack/Tower, Outlet Type UPS/Surge, Number of Outlets 10, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (1) L5-30R, (3) 5-20R, (6) 5-15R, NEMA Plug Configuration L5-30P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 4 to 8 msec, Width 7 in, Depth 19 in, Height 17 in
