  11. UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC

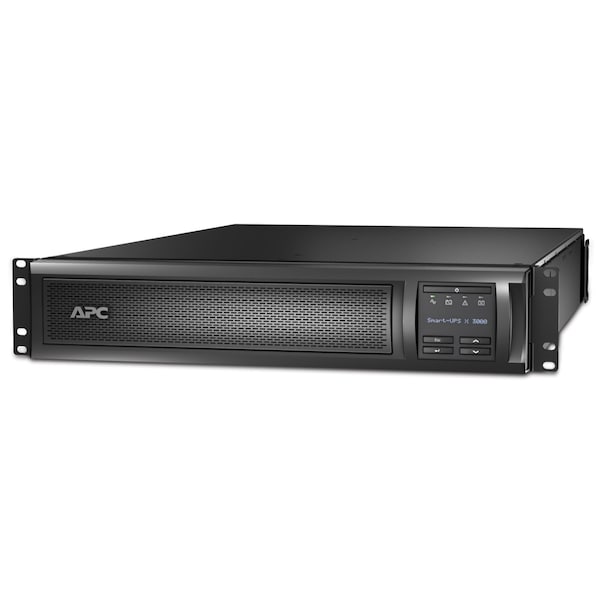

Apc UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC SMX3000RMLV2U - main

UPS System, 3000VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # SMX3000RMLV2U

  • Zoro # G5114678

product price: $2,327.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack/Tower
Wattage
2.7 kW
Input Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMX3000RMLV2U
Zoro #
G5114678
UPC #
731304268550
Country of Origin
India

Dimensions

Cord Length
8 ft
Width
26 in
Depth
26 in
Height
3 in
Overall Height
8.5 cm
Overall Width
43.2 cm
Rack Height
2U
Power Cord Length
8 ft
Overall Depth
66.7 cm

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack/Tower
Wattage
2.7 kW
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
18 min/6.3 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
7
Fax/Modem Line Protection
No
Standards
BSMI, CSA, NOM, RoHS, VCCI Class A
NEMA Plug Configuration
L5-30P
Transfer Time
4 to 8 msec
Automatic Volts Regulation
Yes
Hz
50/60 Hz ( +/-3 Hz)
VA Rating - UPS Systems
3.0 kVA
Includes
Rack Mounting Brackets, Rack Mounting Hardware, Rack Mounting Support Rails, Removable Support Feet, Smart UPS Signalling RS-232 Cable, USB Cable
NEMA Receptacle Configuration
(1) L5-30R; (3) 5-15R; (3) 5-20R
Ports
EPO, RJ45 10/100Base-T, RJ45 Serial, Smart Slot, USB
Input Current
24 A
Phase
Single
Display Type
LCD/LED
Battery Type
Lead Acid
Capacity - Batteries
2880 VA/2700 W
Housing Color
Black
Housing Material
Steel
Other Input Voltages
100 V || 110 V || 127 V
Storage Altitude
0-50000 ft
Battery Life
3-5 year(s)
Typical Battery Recharge Time
3 Hour
Usb Compatible
Yes
Rated Power In Va
2880 VA
USB
Yes
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
Total Number of Expansion Slots
1
Other Output Voltages
100 V || 110 V || 127 V
Form Factor
Rack-mountable
Operating Altitude
0...10000 ft
Number Of Rack Unit
2U
Surge Energy Rating
540 J
Number Of Cables
1
Additional Specification
extended run
Kw Rating
2700 W
Product Certifications
BSMI || CSA || NOM || TUV || VCCI Class A
Emergency Power OFF
Yes
Hot Swappable
Yes
Ambient Air Temperature For Storage
-15-45°C
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Efficiency At Full Load
70...153 V
Number of Battery & Surge Outlets
7
Online Thermal Dissipation
276 Btu/h
Free Slots
1
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Package Contents
Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS , CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Serial Port
Yes
Product Series
X
Acoustic Level
55 dBA
Ambient Air Temperature For Operation
0-40°C
Provided Equipment
CD with software || Documentation CD || Installation guide || Rack mounting hardware || Rack Mounting brackets || Rack Mounting support rails || Removable support feet || Smart UPS signalling RS-232 cable || USB cable
Waveform Type
Sine Wave
Control Panel
Multi-function LCD status and control console, LED status display with on line : on battery : replace battery and overload indicators
Load Capacity
2880 VA/2700 W
Harmonic Distortion
Less than 5%
Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Relative Humidity
0-95 %
Battery Chemistry
Valve Regulated Lead Acid
Mounting Location
front
Includes Battery
Battery Included
Input Current - Maximum
24 A
External Battery Pack Part Number
SMX120RMBP2U
Manufacturer Warranty
3 yr
Transfer Time - Minimum
4 msec
Power Rating - Apparent
3 kVA
Transfer Time - Maximum
8 msec
Replacement Battery Part Number
APCRBC117
External Battery Compatible
External Battery Pack Compatible
Frequency
50/60 Hz
Battery Life - Minimum
3 yr
Audible Alarm Conditions
Low Battery
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Output Ports Included
RS-232, USB
Plug Configuration
L5-30P
Power Rating - Real
2.7 kW
Number of Outlets - UPS
7
Surge Suppression Rating
540 J
Battery Recharge Time
3 hr
Operating Temperature - Maximum
104 Degrees F
Run Time - Full Load
6.25 min
Receptacle Configuration
5-15R, 5-20R, L5-30R
Operating Temperature - Minimum
32 Degrees F

Description

UPS System, Line Interactive, Power Rating 3 kVA, Wattage 2.7 kW, Input Voltage 120V AC, Output Voltage 120V AC, Backup Time (Half/Full Load) 18 min/6.3 min, Mounting Rack/Tower, Outlet Type UPS/Surge, Number of Outlets 7, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (1) L5-30R, (3) 5-15R, (3) 5-20R, NEMA Plug Configuration L5-30P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 4 to 8 msec, Width 17 in, Depth 26 in, Height 3 in
