  11. UPS System, 3000VA, Line Interactive, Out: 208/220/230/240V AC In: 208/220/230/240V AC

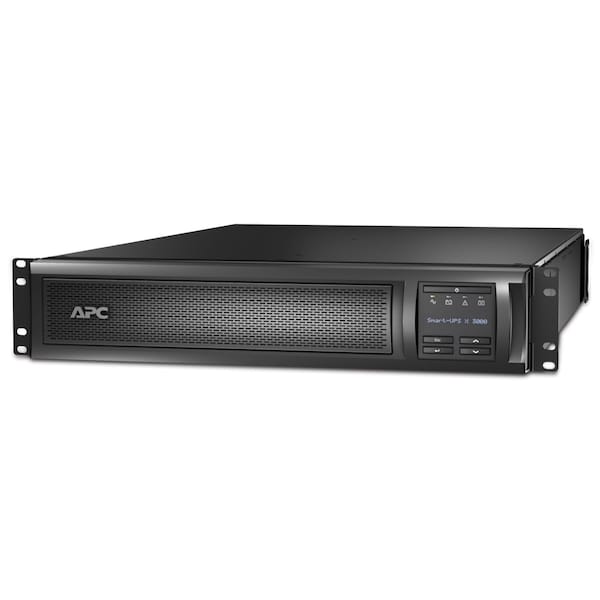

Apc UPS System, 3000VA, Line Interactive, Out: 208/220/230/240V AC In: 208/220/230/240V AC SMX3000RMHV2UNC - main

UPS System, 3000VA, Line Interactive, Out: 208/220/230/240V AC In: 208/220/230/240V AC

  • Mfr # SMX3000RMHV2UNC

  • Zoro # G5073472

product price: $3,689.99
/ea
Free Shipping & Returns

Key Features

VA Rating - UPS Systems
3.0 kVA
UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack/Tower
Wattage
2.7 kW
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMX3000RMHV2UNC
Zoro #
G5073472
UPC #
731304272694
Country of Origin
Philippines

Dimensions

Cord Length
8 ft
Width
26 in
Depth
26 in
Height
3 in
Overall Height
8.5 cm
Overall Width
43.2 cm
Rack Height
2U
Power Cord Length
8 ft
Overall Depth
66.7 cm

Details

VA Rating - UPS Systems
3.0 kVA
Item
UPS System
UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack/Tower
Wattage
2.7 kW
Input Voltage
208/220/230/240V AC
Output Voltage
208/220/230/240V AC
Backup Time (Half/Full Load)
14 min/5 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
11
NEMA Plug Configuration
L5-30P
Phase
Single
Ports
EPO, RJ45 10/100Base-T, RJ45 Serial, Smart Slot, USB
Fax/Modem Line Protection
No
Includes
Rack Mounting Support Rails, Smart UPS Signalling RS-232 Cable, Temperature Probe
Automatic Volts Regulation
Yes
Standards
C-tick, CE, EAC, GOST, IRAM, RoHS, VDE
NEMA Receptacle Configuration
No Configuration
Input Current
24 A
Transfer Time
4 to 8 msec
Display Type
LCD/LED
Hz
50/60 Hz ( +/-3 Hz)
Battery Type
Lead Acid
Housing Color
Black
Capacity - Batteries
3000 VA/2700 W
Housing Material
Steel
Provided Equipment
CD with software || Rack Mounting support rails || Smart UPS signalling RS-232 cable || Temperature Probe || User Manual || Web/SNMP Management Card
Number Of Rack Unit
2U
Online Thermal Dissipation
184 Btu/h
Ambient Air Temperature For Storage
-15-45°C
Control Panel
Multi-function LCD status and control console, LED status display with on line : on battery : replace battery and overload indicators
Relative Humidity
0-95 %
Storage Altitude
0-50000 ft
Mounting Location
front
Usb Compatible
Yes
Ambient Air Temperature For Operation
0-40°C
Efficiency At Full Load
140...280 V
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Free Slots
0
Rated Power In Va
3000 VA
Presentation
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Product Certifications
C-tick || CE || EAC || GOST || IRAM || VDE
Harmonic Distortion
Less than 5%
Additional Specification
network card pre-installed
Acoustic Level
55 dBA
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Other Input Voltages
220 V || 240 V
Other Output Voltages
208 V || 220 V || 240 V
Operating Altitude
0...10000 ft
Number Of Cables
1
Battery Life
3-5 year(s)
Kw Rating
2700 W
Number of Battery & Surge Outlets
11
Product Series
X
Waveform Type
Sine Wave
Typical Battery Recharge Time
3 Hour
Package Contents
Smart-UPS 3000 VA Tower/Rack Mountable UPS , CD with software, Rack mounting support rails, Smart UPS signalling RS-232 cable, Temperature probe, User manual, Web/SNMP management card
Surge Energy Rating
645 J
Form Factor
Rack-mountable
Emergency Power OFF
Yes
Load Capacity
3000 VA/2700 W
Serial Port
Yes
Hot Swappable
Yes
Network Management
SNMP Manageable
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
USB
Yes
Battery Chemistry
Valve Regulated Lead Acid
Includes Battery
Battery Included
External Battery Compatible
External Battery Pack Compatible
Manufacturer Warranty
3 yr
Transfer Time - Minimum
6 msec
Frequency
50/60 Hz
Battery Life - Minimum
3 yr
Plug Configuration
C20
Receptacle Configuration
C13, C19
Replacement Battery Part Number
APCRBC117
Input Current - Maximum
24 A
Battery Recharge Time
3 hr
Power Rating - Apparent
3 kVA
Surge Suppression Rating
645 J
Power Rating - Real
2.7 kW
Transfer Time - Maximum
10 msec
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Run Time - Full Load
6.25 min
Operating Temperature - Maximum
104 Degrees F
Operating Temperature - Minimum
32 Degrees F
Number of Outlets - UPS
11
Audible Alarm Conditions
Low Battery
Output Ports Included
RS-232, SNMP
External Battery Pack Part Number
SMX120RMBP2U

Description

UPS System, Line Interactive, Power Rating 3 kVA, Wattage 2.7 kW, Input Voltage 208V AC, 220V AC, 230V AC, 240V AC, Output Voltage 208V AC, 220V AC, 230V AC, 240V AC, Backup Time (Half/Full Load) 14 min/5 min, Mounting Rack/Tower, Outlet Type UPS/Surge, Number of Outlets 11, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration No Configuration, NEMA Plug Configuration L5-30P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 4 to 8 msec, Width 17 in
