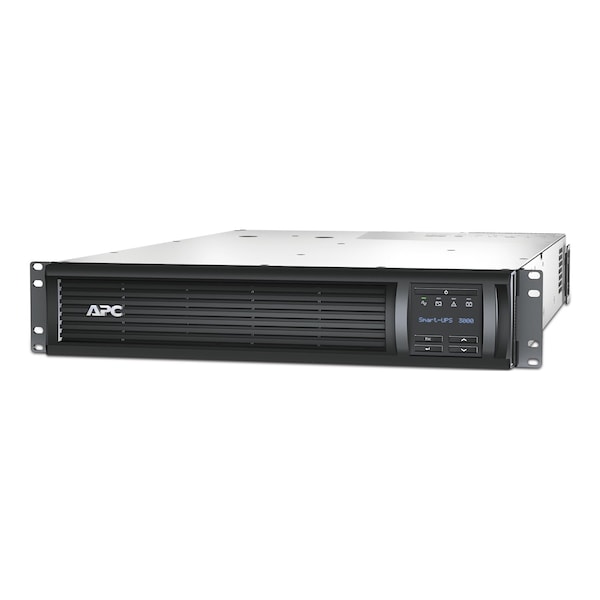

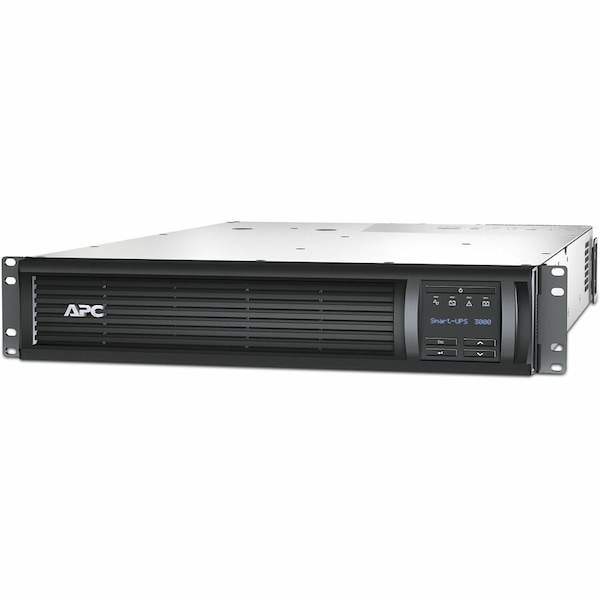

Apc UPS System, 3000VA, Line Interactive, Out: 208V AC In: 208V AC SMT3000RMT2U - main

UPS System, 3000VA, Line Interactive, Out: 208V AC In: 208V AC

  • Mfr # SMT3000RMT2U

  • Zoro # G5105812

product price: $2,681.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack
Wattage
2.7 kW
Input Voltage
208V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SMT3000RMT2U
Zoro #
G5105812
UPC #
731304279556
Country of Origin
Philippines

Dimensions

Width
27 in
Depth
27 in
Height
3 in
Cord Length
8 ft
Overall Height
8.6 cm
Overall Width
48 cm
Rack Height
2U
Overall Depth
68.3 cm
Power Cord Length
8 ft

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
3000VA
Mounting
Rack
Wattage
2.7 kW
Input Voltage
208V AC
Output Voltage
208V AC
Backup Time (Half/Full Load)
11.7 min/3.4 min
Outlet Type
UPS/Surge
Medical Grade
No
Number of Outlets
2
Ports
RJ45 Serial, Smart Slot, USB
Input Current
24 A
NEMA Plug Configuration
L6-20P
Transfer Time
4 to 8 msec
NEMA Receptacle Configuration
(2) L6-20R
Display Type
LCD
Phase
Single
Standards
RoHS
Hz
50/60 Hz ( +/-3 Hz)
VA Rating - UPS Systems
3.0 kVA
Includes
Rack Mounting Hardware, Rack Mounting Support Rails, Smart UPS Signalling RS-232 Cable, USB Cable
Automatic Volts Regulation
Yes
Fax/Modem Line Protection
No
Capacity - Batteries
3000 VA/2700 W
Battery Type
Lead Acid
Housing Material
Steel
Mounting Location
front
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Control Panel
Multi-function LCD status and control console
Battery Life
3-5 year(s)
Relative Humidity
0-95 %
Number Of Cables
1
Usb Compatible
No
Kw Rating
2700 W
Online Thermal Dissipation
348 Btu/h
Operating Altitude
0...10000 ft
Rated Power In Va
3000 VA
Storage Altitude
0-50000 ft
Number Of Rack Unit
2U
Acoustic Level
55 dBA
Harmonic Distortion
Less than 5%
Alarm
alarm when on battery : distinctive low battery alarm : configurable delays
Efficiency At Full Load
131...268 V adjustable || 141...255 V
Ambient Air Temperature For Storage
-15-45°C
Provided Equipment
CD with software || Documentation CD || Rack mounting hardware || Rack Mounting support rails || Smart UPS signalling RS-232 cable || USB cable
Ambient Air Temperature For Operation
0-40°C
Free Slots
1
Number of Battery & Surge Outlets
2
Total Number of Expansion Slots
1
Surge Energy Rating
320 J
Battery Characteristics
Maintenance-free, Sealed, Spill-proof
USB
Yes
Number of Batteries
1
Load Capacity
3000 VA/2700 W
Package Contents
Smart-UPS 3000VA Rack-mountable UPS , CD with software, Documentation CD, Rack mounting hardware, Rack mounting support rails, Smart UPS signalling RS-232 cable, USB cable
Serial Port
Yes
Hot Swappable
Yes
Form Factor
Rack-mountable
Battery Chemistry
Valve Regulated Lead Acid
Typical Battery Recharge Time
3 Hour
Waveform Type
Sine Wave
Manufacturer Warranty
3 yr
Transfer Time - Minimum
4 msec
Power Rating - Apparent
3 kVA
Includes Battery
Battery Included
Run Time - Full Load
3.38 min
Operating Temperature - Maximum
104 Degrees F
Number of Outlets - UPS
2
Frequency
50/60 Hz
Automatic Voltage Regulation
Includes Automatic Voltage Regulation
Receptacle Configuration
L6-20R
Output Ports Included
RS-232, USB
Replacement Battery Part Number
RBC43
External Battery Compatible
Not External Battery Pack Compatible
Battery Life - Minimum
3 yr
Power Rating - Real
2.7 kW
Surge Suppression Rating
320 J
Plug Configuration
L6-20P
Operating Temperature - Minimum
32 Degrees F
Input Current - Maximum
24 A
Transfer Time - Maximum
8 msec
Battery Recharge Time
3 hr
Audible Alarm Conditions
Low Battery

Description

UPS System, Line Interactive, Power Rating 3 kVA, Wattage 2.7 kW, Input Voltage 208V AC, Output Voltage 208V AC, Backup Time (Half/Full Load) 11.7 min/3.4 min, Mounting Rack, Outlet Type UPS/Surge, Number of Outlets 2, Medical Grade Not Medical Grade Approved, NEMA Receptacle Configuration (2) L6-20R, NEMA Plug Configuration L6-20P, Automatic Volts Regulation Yes, Fax/Modem Line Protection No, Transfer Time 4 to 8 msec, Width 19 in, Depth 27 in, Height 3 in, Cord Length 8 ft, Display Type LCD
