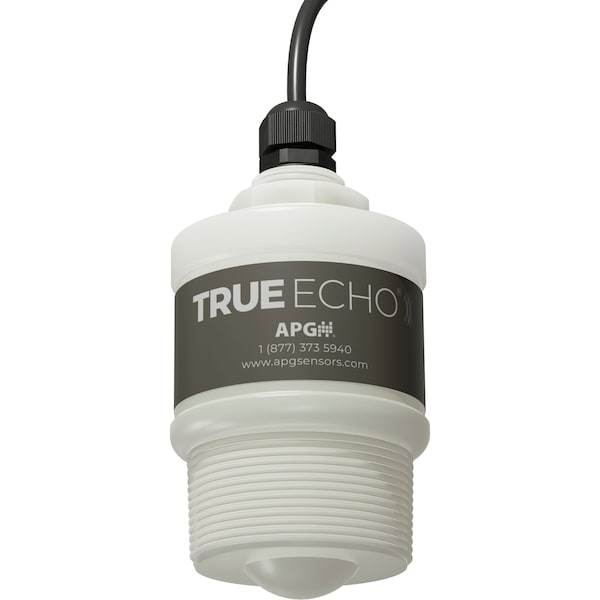

True Echo CR-L Radar Liquid Level Sensor; Range: 7.87in to 49.21 ft; PVDF body; Modbus; 40ft cable
Mfr # CR-L-GP-49-L31-K-E5-40-B0
Zoro # G415236602
product price:
$
1,027.99
/ea
Free Shipping & Returns
Key Features
Diameter
2.72 in
Enclosure Color
Translucent
Material
PVDF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CR-L-GP-49-L31-K-E5-40-B0
- Zoro #
- G415236602
- UPC #
- -
- Country of Origin
- China
Dimensions
- Diameter
- 2.72 in
Details
- Enclosure Color
- Translucent
- Material
- PVDF
Description
Radar Liquid Level Sensor, Range: 7.87in to 49.21 ft 0.2 to 15 m, PVDF body, RS-485 Modbus output, 40 feet cable,Non-Contact Level Measurement for Liquids, 80 GHz radar 76 to 81 GHz - FMCW bandwidth,Bluetooth programming: IOS and Android, Accuracy: plus or minus 3mm,Minimum Dielectric : greater than or equal to 2,Process Temperature -40 degrees to 158 degrees Farenheit -40 degrees to 70 degrees Celsius,Minimum Blind Zone: 7.87 inches,Supply voltage: RS-485 outputs require 12-30 VDC supply,Certifications: CE, FCC, ISED Canadian,Connection: 2in NPT,Beam Angle: 8 degrees 4 degrees half angle,IP 67 Enclosure
- • Non-Contact Level Measurement for Liquids 80 GHz radar (76 to 81 GHz - FMCW bandwidth)
- • Range: 7.87" to 49.21 ft (0.2 to 15 m)
- • Bluetooth programming: IOS and Android
- • Accuracy: ± 3mm
- • IP 67 Enclosure
