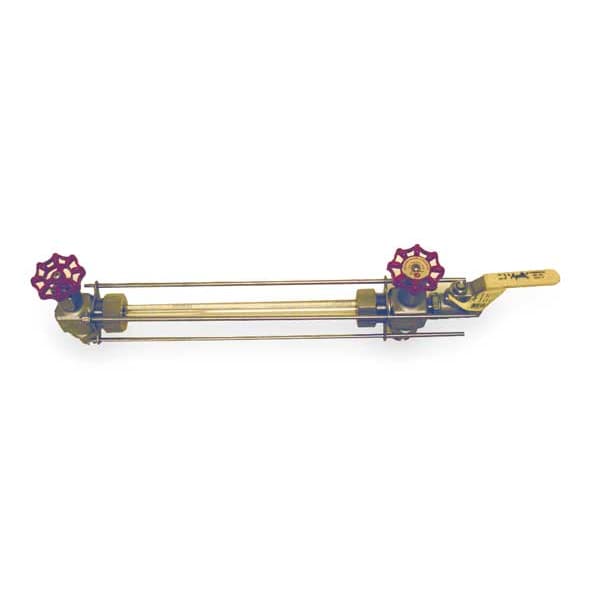

Water Gauge, Standard Pattern, 1/2 In, MNPT
Mfr # 2340100
Zoro # G0611037
product price:Â $761.99
/ea
Free Shipping & Returns
Key Features
Body Material
Stainless Steel
Max. Pressure
500 psig
Glass Length
12 in
Max. Temp.
450 Degrees F
Glass Tube O.D.
5/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 2340100
- Zoro #
- G0611037
- UPC #
- 670750531798
- Country of Origin
- United States
Dimensions
- Glass Length
- 12 in
- Center to Center Length
- 14 in
- Pipe Size
- 1/2 in
- Gauge Glass Length
- 12 in
- Compatible Pipe Size
- 1/2 in
- Gauge Glass Diameter
- 5/8 in
Details
- Item
- Water Gauge
- Body Material
- Stainless Steel
- Max. Pressure
- 500 psig
- Max. Temp.
- 450 Degrees F
- Glass Tube O.D.
- 5/8 in
- Number of Guard Rods
- 4
- Includes
- Drain Valve with Safety Handle
- Standards
- CRN Registered
- Water Gauge Gasket Material
- TFE with Hypalon
- Wheel Material
- Aluminum
- Connection
- MNPT
- Stem Packing
- PTFE with ARAMID
- Media Temperature - Maximum
- 450 Degrees F
- Stem Packing Material
- PTFE with ARAMID
- Gasket Material
- PTFE with Hypalon
- Operating Pressure - Maximum
- 500 psig
- Valve Type
- Ball Drain
- Connection Type
- NPT
Description
Water Gauge, Body Material Stainless Steel, Gauge Glass Diameter 5/8 in, Gauge Glass Length 12 in, Center to Center Length 14 in, Media Temperature - Maximum 450 Degrees F, Gasket Material PTFE with Hypalon, Connection Type NPT, Compatible Pipe Size 1/2 in, Number of Guard Rods 4, Valve Type Ball Drain, Operating Pressure - Maximum 500 psig, Stem Packing Material PTFE with ARAMID, Standards CRN Registered
