  11. 2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC

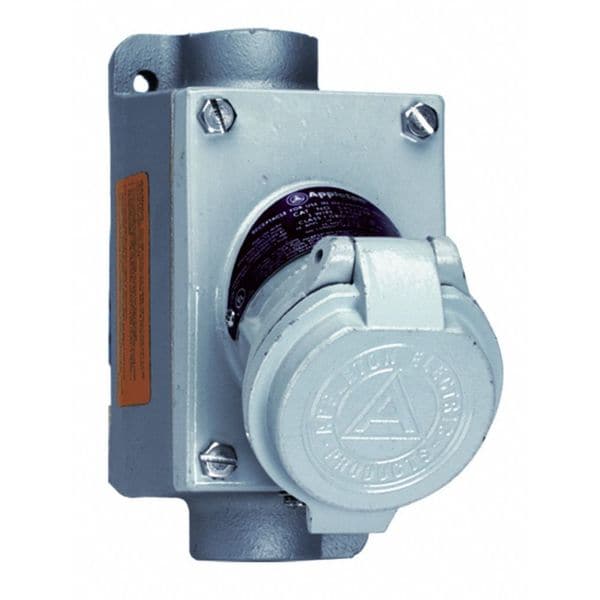

Appleton Electric 2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC CPS152-111 - main

2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC

  • Mfr # CPS152-111

  • Zoro # G5916294

product price: $543.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/240V AC
Number of Wires
2
Number of Poles
3
HP
1 hp
Amps
20 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPS152-111
Zoro #
G5916294
UPC #
00781381000505
Country of Origin
Mexico

Dimensions

Hub Size
1/2 in
Hub Diameter
0.5 in
For Maximum Cable Diameter
0.639 in
For Minimum Cable Diameter
0.538 in
Face Diameter
2.63 in
Plug Cable Diameter
.538- .639

Details

Item
Pin and Sleeve Receptacle
Voltage
120/240V AC
Number of Wires
2
Number of Poles
3
HP
1 hp
Amps
20 A
Material
Copper-Free Aluminum Cover, Malleable Iron Body
Screws
Captive Hex Head Slotted, Stainless Steel
Finish
Epoxy Powder Coated
Standards
UL Listed
Hub Style
Feed-Thru
Mounting Box
1-Gang
IP Rating
Not Rated
UL 94 Flammability Rating
Not Rated
Current Rating
20 A
Contact Material
Copper
Hub Type
Feed Through
Power Indicating Light
No
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D
Connection Orientation
60 Degrees Elbow
Housing Material
Malleable Iron
NEMA Enclosure Rating
Not Rated
Grounding
Grounded
Voltage Rating
125 to 250V AC, 18V DC
Shrouded
Yes
Flange Type
Non-Flanged
Includes Mounting Hardware
Yes
Cap Type
Spring-Loaded Cap
Phase
Single
Housing Color
Gray
Housing Material Finish
Epoxy Powder Coated
Wire Connection Type
Spring Clamp Terminals
Resistance Properties
Corrosion Resistant
Features
Delayed Action Construction: Insert Plug Partially Rotate Slide on Front of Receptacle and Insert Plug Fully
Market
Industrial
Insulation Material
Fiberglass-Reinforced Polyester
GFCI
Yes
Reverse Service
No
Horsepower Rating
1 hp
Number of Gangs
1
Mounting Box Entries
Dead-End or Feed-Thru
Materials and Finishes
Receptacle cover and CPP plug is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Mounting box is malleable iron with triple-coat. Insulating blocks are fiberglass reinforced polyester.
Amperage
20
Horsepower Ratings
1
Hazardous Area Classification
Class I, Division 1 and 2, Groups C, D

Description

Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Non-Flanged, Grounding Style Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, IP Rating Not Rated, NEMA Enclosure Rating Not Rated, Number of Gangs 1, Number of Poles 3, Number of Wires 2, Phase Single, Shrouded Yes, Voltage Rating 125 to 250V AC, 18V DC, Cap Type Spring-Loaded Cap, Connection Orientation 60 Degrees Elbow, Face Diameter 2.63 in, Flange Diameter Not Applicable
