  11. 2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC

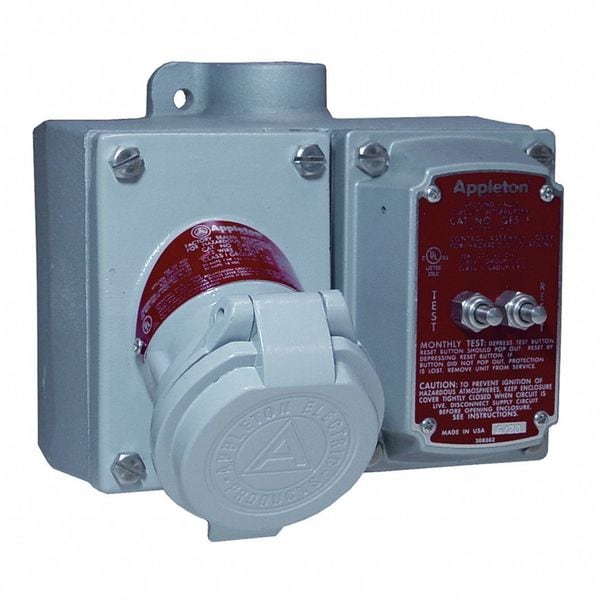

Appleton Electric 2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC CPS152-202GFI - main

2W 3P 20A Hazardous Pin & Sleeve Receptacle 120/240VAC

  • Mfr # CPS152-202GFI

  • Zoro # G6017864

product price: $2,213.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/240V AC
Number of Wires
2
Number of Poles
3
HP
1 hp
Amps
20 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPS152-202GFI
Zoro #
G6017864
UPC #
078138102521
Country of Origin
Mexico

Dimensions

Hub Size
3/4 in
For Maximum Cable Diameter
0.639 in
Face Diameter
2.63 in
Hub Diameter
0.75 in
For Minimum Cable Diameter
0.538 in
Plug Cable Diameter
.538- .639

Details

Item
Pin and Sleeve Receptacle with GFCI
Voltage
120/240V AC
Number of Wires
2
Number of Poles
3
HP
1 hp
Amps
20 A
Material
Copper-Free Aluminum Cover, Malleable Iron Body
Screws
Captive Hex Head Slotted, Stainless Steel
Finish
Epoxy Powder Coated
Standards
UL Listed
Hub Style
Dead-end
Mounting Box
2-Gang
NEMA Enclosure Rating
Not Rated
Reverse Service
No
Number of Gangs
2
Wire Connection Type
Spring Clamp Terminals
Features
Delayed Action Construction: Insert Plug Partially Rotate Slide on Front of Receptacle and Insert Plug Fully
Connection Orientation
60 Degrees Elbow
Voltage Rating
125 to 250V AC, 18V DC
Power Indicating Light
No
Grounding
Grounded
Phase
Single
Cap Type
Spring-Loaded Cap
IP Rating
Not Rated
Flange Type
Non-Flanged
Includes Mounting Hardware
Yes
Current Rating
20 A
Shrouded
Yes
Insulation Material
Fiberglass-Reinforced Polyester
UL 94 Flammability Rating
Not Rated
Housing Material
Malleable Iron
GFCI
Yes
Contact Material
Copper
Horsepower Rating
1 hp
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D
Resistance Properties
Corrosion Resistant
Hub Type
Dead End
Market
Industrial
Housing Material Finish
Epoxy Powder Coated
Housing Color
Gray
Amperage
20
Horsepower Ratings
1
Mounting Box Entries
Dead-End or Feed-Thru
Materials and Finishes
Receptacle cover and CPP plug is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Mounting box is malleable iron with triple-coat. Insulating blocks are fiberglass reinforced polyester.
Hazardous Area Classification
Class I, Division 1 and 2, Groups C, D

Description

Pin and Sleeve Receptacle with GFCI, Current Rating 20 A, Flange Type Non-Flanged, Grounding Style Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, IP Rating Not Rated, NEMA Enclosure Rating Not Rated, Number of Gangs 2, Number of Poles 3, Number of Wires 2, Phase Single, Shrouded Yes, Voltage Rating 125 to 250V AC, 18V DC, Cap Type Spring-Loaded Cap, Connection Orientation 60 Degrees Elbow, Face Diameter 2.63 in, Flange Diameter Not Applicable
