  11. Cable Connector, 2 in., Straight, Silver

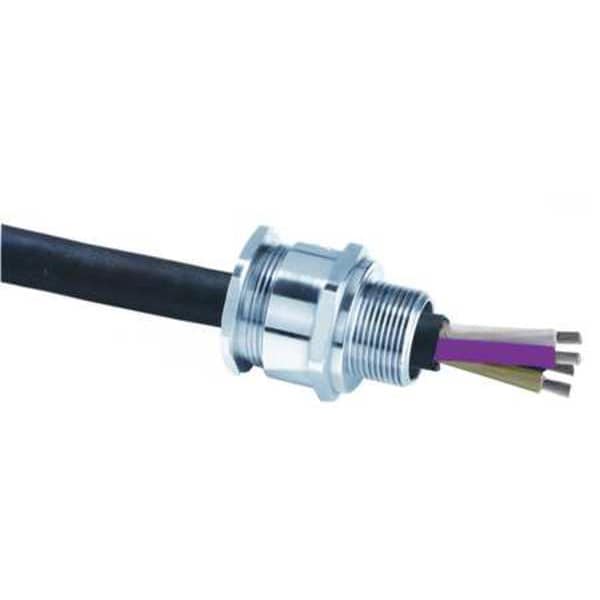

Appleton Electric Cable Connector, 2 in., Straight, Silver 50A2F2005 - main

Cable Connector, 2 in., Straight, Silver

  • Mfr # 50A2F2005

  • Zoro # G4086634

product price: $199.99
/ea
Free Shipping & Returns

Key Features

For Use With
Unarmored Cable
Hub Size
2 in MNPT
Material
Brass
Color
Silver
Length
1.18"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50A2F2005
Zoro #
G4086634
UPC #
781381248846
Country of Origin
United Kingdom

Dimensions

Hub Size
2 in MNPT
Length
1.18"
Hub Trade Size
2"
Min. Throat Dia.
0.50"
Length - External Strain Relief
1 15/32 in
Cord Dia. Range
1.40 in to 1.74 in
Length - Box to End of Connector
1 3/16 in
Compatible Conduit Trade Size
2 in
Thread Size
2 in

Details

Item
Enhanced Rating Cord Connector
For Use With
Unarmored Cable
Material
Brass
Color
Silver
Standards
101909, ANSI-ASME B1.20.1, CSA C22.2 No. 174, EN, IEC Standards 6007, IEC Standards 60079-0, IEC Standards 60079-1, IEC Standards 60079-7
Gland Color Code
No Code
Number of Cords
1
Connector Type
Straight
Body Color - Cord Connector
Silver
Material - Cord Connector
Nickel Plated Brass
Style - Connector
Straight
Insulated
No
Box Connection
2 in MNPT
Hazardous Location Rating
Class I, Division 2, Groups B, C, D, Class II, Division 2, Groups E, F, G, Class III, Division 2
Strain Relief Type
No External Strain Relief
Item - Cord Connector
Enhanced Rating Cord Connector
Material - External Strain Relief
No External Strain Relief
Hazardous Location Rating - Europe
Ex d I, Ex d IIC Gb, Ex d Imb, Ex e I, Ex e I mB, Ex e IIC Gb, Ex II 2 GD, II 1D, Ex II3G, Ex nR IIC GC I M2, Ex ta IIIC Da, Gas Groups IIA, IIB, IIC, Zone 1 and 2, Zone 21 and 22
Thread Type
NPT Thread
For Minimum Cable OD
1.4 in
Connection Orientation
Straight
Minimum Operating Temperature
-76 Degrees F
For Maximum Cable OD
1.74 in
Maximum Operating Temperature
266 Degrees F
Body Color
Silver
Collar Material
Brass
Body Material
Brass
Environmental Rating
Hazardous Locations
Sealing Ring Material
Thermoplastic Elastomer
Grommet Color Code
No Code
ATEX/IECEx Certifications and Compliances
Zone 1 and 2 “ 21 and 22; Ex II 2 GD; Ex II 1D; Ex d IIC Gb; Ex e IIC Gb; Ex ta IIIC Da; Ex II 3G; Ex nR IIC Gc I M2; Ex d I Mb; Ex e I Mb
Gland Material
Nickel plated brass
Seal Material
LSF (Low Smoke Fume) thermoplastic elastomer
NEC/CEC Certifications and Compliances
Class I, Division 2, Groups B, C, D; Class II, Division 2, Groups E, F, G; Class III, Division 2; Ex d IIC; Ex e IIC; Ex nR II; Type 4X (Oil Resistant II)
Cable Gland Accessories
Shroud, locknut, earth tag, entry thread seal, serrated washers, adaptors and reducers
Optional Material
316L stainless steel version (replace last digit 5 with 4 or copperfree aluminum (replace last digit 5 with 1)

Description

Enhanced Rating Cord Connector, Cord Dia. Range 1.40 in to 1.74 in, Box Connection 2 in MNPT, Material - Cord Connector Nickel Plated Brass, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length 1 15/32 in, Length - Box to End of Connector 1 3/16 in, Insulated No
