  15. Cable Pull Sw, HazLoc, Dbl End, 25Lbs, TCDB

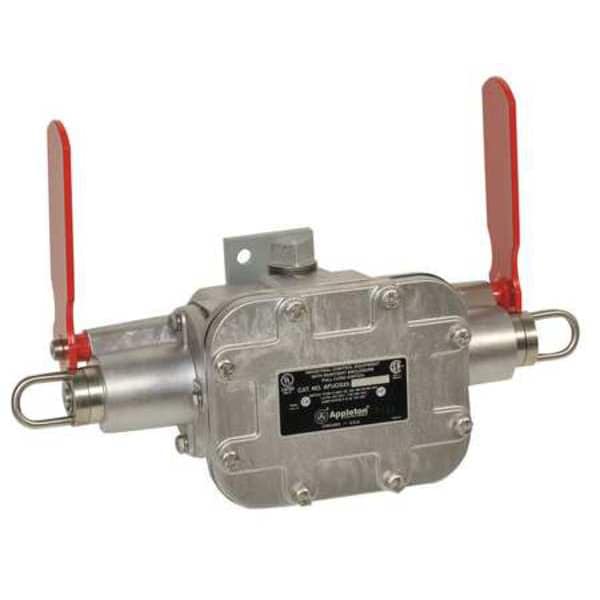

Appleton Electric Cable Pull Sw, HazLoc, Dbl End, 25Lbs, TCDB AFUX0333-22 - main

Cable Pull Sw, HazLoc, Dbl End, 25Lbs, TCDB

  • Mfr # AFUX0333-22

  • Zoro # G9178687

product price: $2,466.99
/ea
Free Shipping & Returns

Key Features

Switch Function
Maintained
Mounting Style
Double End
AC Contact Rating
15 A @ 120 V, 15 A @ 240 V, 15 A @ 480 V, 15 A @ 600 V
Contact Form
1NO/1NC
Reset
Actuator
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFUX0333-22
Zoro #
G9178687
UPC #
-
Country of Origin
United States

Dimensions

Width
11.0 in
Length
16.7 in
Depth
7.7 in
Length (Straight Wireway)
16.7 in
Overall Depth
7.88 in
Overall Width
11 in

Details

Item
Emergency Cable Pull Switch
Switch Function
Maintained
Mounting Style
Double End
AC Contact Rating
15 A @ 120 V, 15 A @ 240 V, 15 A @ 480 V, 15 A @ 600 V
Contact Form
1NO/1NC
Reset
Actuator
Max. Cable Span
200 ft
Operating Force
25 lb
NEMA Rating
7CD, 9EFG
Indicator
Flag Arm
Switching Ability
Dual Cable
DC Contact Rating
0.4 A @ 230 V, 0.8 A @ 115 V
HP
0.5 hp @ 125V AC, 1.0 hp @ 250V AC
Safety Rating
UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Standards
NEC Certified
Wiring Entry
Conduit
Case Material
Cast Aluminum
Cable Connection Location
Left and Right
Series
AFUX
NEMA Enclosure Rating
7, 9
Horsepower
0.5 HP @ 120V AC, 1 HP @ 240V AC
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
151 Degrees F
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Cable Span - Maximum
200 ft
Pull Force
25 lb
Action
Maintained

Description

Emergency Cable Pull Switch, Switch Function Maintained, Mounting Style Double End, AC Contact Rating 15 A @ 120 V, 15 A @ 240 V, 15 A @ 480 V, 15 A @ 600 V, Contact Form 1NO/1NC, Actuator Reset, Max. Cable Span 200 ft, Operating Force 25 lb, NEMA Rating 7CD, 9EFG, Indicator Flag Arm, Cable Connection Location Left and Right, Length 16.7 in, Width 11.0 in, Depth 7.7 in, Switching Ability Dual Cable, DC Contact Rating 0.4 A @ 230 V, 0.8 A @ 115 V, Case Material Cast Aluminum, Wiring Entry Conduit
