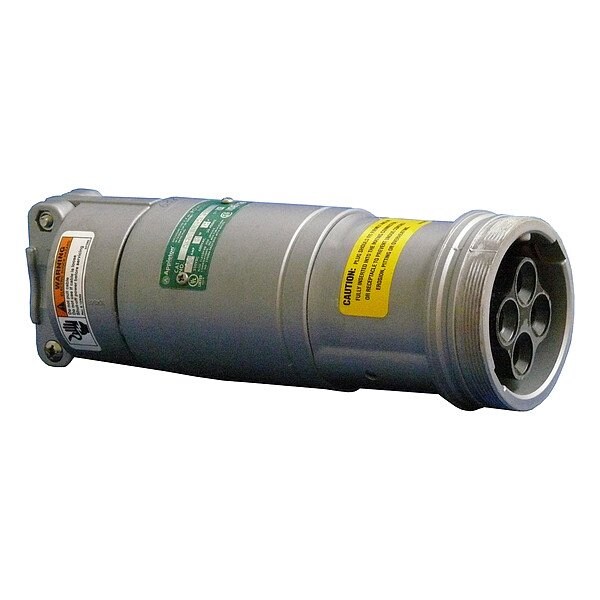

Connector
Mfr # ARC1034CD
Zoro # G322656562
product price:Â
$
906.99
/ea
Free Shipping & Returns
Key Features
For Maximum Cable Diameter
1.906 in
Grounding
Grounded
Standards
CSA, cULus, UL
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-13 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ARC1034CD
- Zoro #
- G322656562
- UPC #
- 781381440516
- Country of Origin
- Mexico
- Grounding
- Grounded
- Standards
- CSA, cULus, UL
- Wire Connection Type
- Screw Terminals
- Minimum Operating Temperature
- -13 Degrees F
- Power Indicating Light
- No
- Current Rating
- 100 A
- NEMA Enclosure Rating
- 4X
- Reverse Service
- No
- Housing Material Finish
- Epoxy Powder Coated
- Voltage Rating
- 600V AC
- Number of Poles
- 4
- Series
- Powertite(TM)
- Housing Material
- Aluminum
- Maximum Operating Temperature
- 104 Degrees F
- Resistance Properties
- Weather Resistant
- Housing Color
- Gray
- Item
- Pin and Sleeve Connector
- Grounding Style
- Style 2
- Number of Wires
- 3
- Phase
- Three
Description
Pin and Sleeve Connector, Current Rating 100 A, Grounding Style Style 2, Horsepower Rating Not Applicable, Housing Color Gray, IP Rating Not Applicable, Number of Poles 4, Number of Wires 3, Phase Three, Resistance Properties Weather Resistant, Switch Rated No, Voltage Rating 600V AC, For Maximum Cable Diameter 1.906 in, For Minimum Cable Diameter 0.875 in, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Material Aluminum, Maximum Wire Size 2/0 AWG
