  9. Electrical Box, Not Applicable, Mounting Box Type, 1 Gang, Malleable Iron, Rectangular Shape

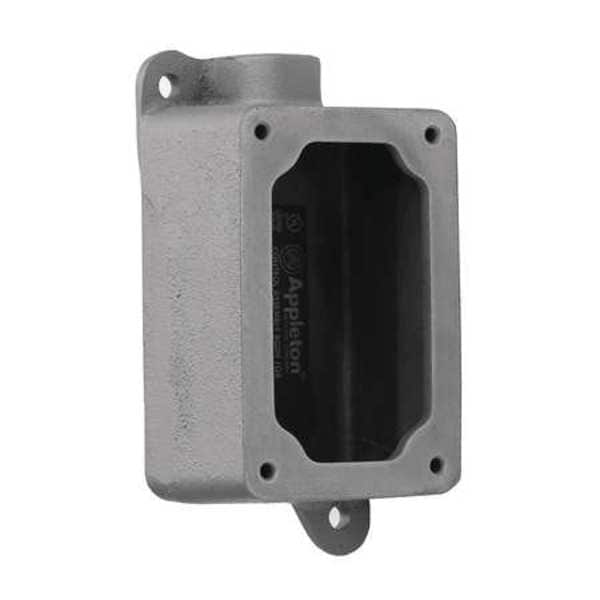

Appleton Electric Electrical Box, Not Applicable, Mounting Box Type, 1 Gang, Malleable Iron, Rectangular Shape EFD150-NL-Q - main

Electrical Box, Not Applicable, Mounting Box Type, 1 Gang, Malleable Iron, Rectangular Shape

  • Mfr # EFD150-NL-Q

  • Zoro # G4176426

product price: $112.99
/ea
Free Shipping & Returns

Key Features

Box Type
Mounting
Number of Gangs
1 Gang
Material
Malleable Iron
Overall Width
3 in
Overall Depth
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EFD150-NL-Q
Zoro #
G4176426
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Width
3 in
Overall Depth
5 in
Conduit Size
1/2 in
Width
3.72 in
Depth
5.31 in
Height
6.06 in
Hub Size
1/2 in
Box Height
4 5/8 in
Overall Height
6 1/8 in

Details

Item
Electrical Box
Box Type
Mounting
Number of Gangs
1 Gang
Material
Malleable Iron
Box Shape
Rectangular
Color
Gray
Standards
UL 508, UL 698, UL 1203; C22.2 No. 14-M, C22.2 No. 25, C22.2 No. 30, Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III
Includes
Internal Ground Screw
Hub Style
Dead-end
Clamp Type
Clamp Not Included
Bracket Type
Lugs
Nameplate Mounting Bracket
Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
Modified Operation Three Position Selector Switches
Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details
Hazardous Location Specification
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Hub Type
Dead End
Number of 3/4 in Back Knockouts
0
Number of 3/4 in Side Knockouts
0
Number of 1/2 in Side Knockouts
0
Ceiling Fan Rated
Not Rated
NEMA Enclosure Rating
3, 7CD, 9EFG
Number of 1 in Side Knockouts
0
Number of 1/2 in Back Knockouts
0
For Construction Type
New Construction, Remodel

Description

Mounting Body, Box Type 1-Gang, Number of Gangs 1, Bracket Type Lugs, Capacity Not Applicable, Material Iron, Clamp Type Clamp Not Included, Color Gray, Standards cULus Listed E10449, cULus Listed E81751, UL 1203, UL 508, UL 698
