This item is Discontinued.

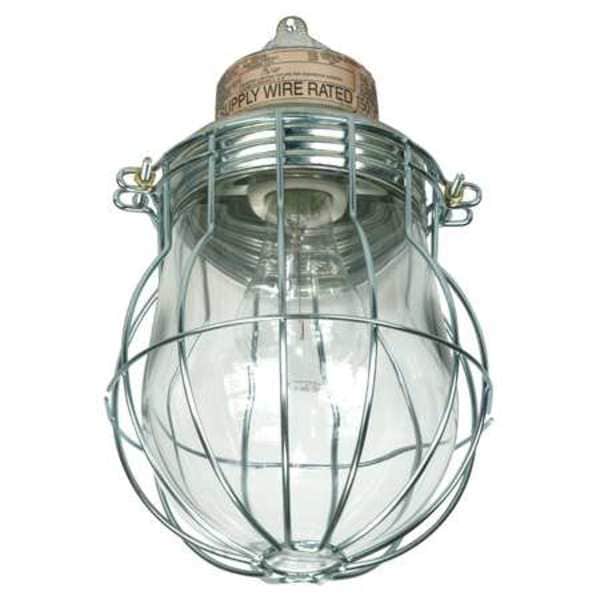

Appleton Electric Fixture, Incandescent EDTP2050G

Fixture, Incandescent (Discontinued)

  • Mfr # EDTP2050G
  • Zoro # G0868201
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EDTP2050G
Zoro #
G0868201
UPC #
-
Country of Origin
Unknown

Dimensions

Width
5 1/4 in
Length
5 1/4 in
Height
9 in
Nominal Width
5 1/4 in
Nominal Height
9 in
Nominal Size - Fixtures
1 ft x 1 ft
Overall Width
5 1/4 in
Overall Height
9 in
Overall Length
5 1/4 in
Height (In.)
9
Width (In.)
5-1/4
Length (In.)
5-1/4

Details

Item
Hazardous Location Lighting Fixture
Lamp Quantity
1
Lamp Type
Incandescent
Lamp Watts
200 W
Fixture Wattage
200
Voltage
120V AC
Lamp Included
No
Fixture Type
Dust/Vapor/Ignition Proof Incandescent Fixture
Ambient Temp. Range
77 Degrees to 257 Degrees F
Includes
Wire Guard
Housing Finish
Clear
Standards
NEC/CEC
Suggested Lamp Item No.
2V287
Finish
Gray Epoxy Powder Coated
Description/Special Features
Suitable for use in Wet Locations
Mounting
Pendant
Bulb Designation
200A21/IF
Emergency Battery Backup
No
Linkable Up To
Unlinkable
Series
EDT Incandescent
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Watts - Fixtures
200.0 W
Fixture Voltage
120V AC
Lamp Type - Fixtures
T3C
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Pendant
Lighting Technology
Incandescent
Dimmable
No
Max. Fixture Wattage
200 W
Number of Bulbs
0
For Number of Bulbs
1
Max. Ambient Temp.
257 Degrees F
Mounting Style
Pendant
For Max. Bulb Wattage
200 W
BAA Compliant
Yes
CA Title 24 Compliant
No
Temperature Code
T3C
Min. Ambient Temp.
77 Degrees F
For Bulb Shape
A21
Mounting Location
Pendant
Safety Rating
Class II, Division 1 and 2, Groups E, F, G, Class III
Color Temperature
Lamp Dependent

Description

Hazardous Location Lighting Fixture, Dust/Vapor/Ignition Proof Incandescent Fixture Fixture Type, Incandescent Lamp Type, Lamp Quantity 1, Bulb Designation 200A21/IF, Lamp Watts 200 W, Suggested Lamp Item No. 2V287, Fixture Wattage 200, Voltage 120V AC, Suitable for use in Wet Locations, No Lamp Included, Ambient Temp. Range 77 Degrees to 257 Degrees F, Finish Gray Epoxy Powder Coated, Pendant Mounting, Length 5 1/4 in, Height 9 in, Includes Wire Guard, Width 5 1/4 in, NEC/CEC
