Shop APPLETON ELECTRIC

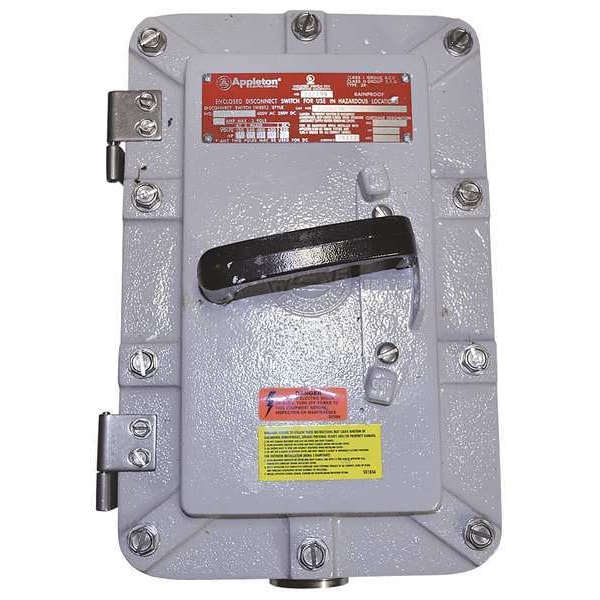

Hazardous Location Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 3R, 4, 4X, 7, 9, Aluminum

  • Mfr # EDS1036

  • Zoro # G3963802

product price:  $4,815.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EDS1036
Zoro #
G3963802
UPC #
-
Country of Origin
United States

Dimensions

Depth
7 1/4 in
Height
16 3/4 in
Width
9 3/4 in
Standard Conduit Size
2 in

Details

Item
Hazardous Location Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R, 4, 4X, 7, 9
HP
75 HP
Voltage
600 V
Housing Material
Aluminum
Standards
C22.2 No. 25, C22.2 No. 30, C22.2 No. 4, UL 894, UL1203
Number of Poles
3
Number of Wires
3
Fusible / Nonfusible
Nonfusible
Includes
Cutler Hammer Disconnect Switch
Safety Rating
UL Listed for Class I, Division 1 and 2, Groups B, C, D, Class II, Division 1 and 2, Groups E, F, G, and Class III
Amps
100 A
Neutral Assembly
Included
Material
Copper Free Aluminum
Material of Construction
Copper Free Aluminum
Series
EDS Series
Duty
Heavy Duty
Neutral Assembly Included
Yes
Features
Top and Bottom Openings for Drainage, Covers have Stainless Steel Screws to Prevent "Freezing", Functions as Load Disconnect Switch or as Individual Motor Control Switch, Hinged, Removable Cover, Insulated Neutral Lug Supplied as Standard, Removable Mounting Plate, Removable Reducer Bushing Furnished with Each Opening, Stainless Steel Shaft and Bushing within Rugged Handle, Self-Locating, Spring-Mounted Internal Handle Actuator, Top and Bottom Standard Feed-Thru Conduit Openings
Electrical Connection
Spring Terminal
NEC Hazardous Location Classification
Class I, Division 1 & 2, Groups B, C, D, Class II, Division 1 & 2, Groups E, F, G, Class III, Division 1 & 2
Horsepower @ 480V AC
75 hp
Horsepower @ 600V AC
75 hp
Horsepower @ 240V AC
30 hp
NEMA Enclosure Rating
3R, 4, 4X, 7, 9

Description

Hazardous Location Safety Switch, Contact Form 3PST, Current Rating 100 A, Depth 7 1/4 in, Duty Heavy Duty, Electrical Connection Spring Terminal, Enclosure Type Enclosed
