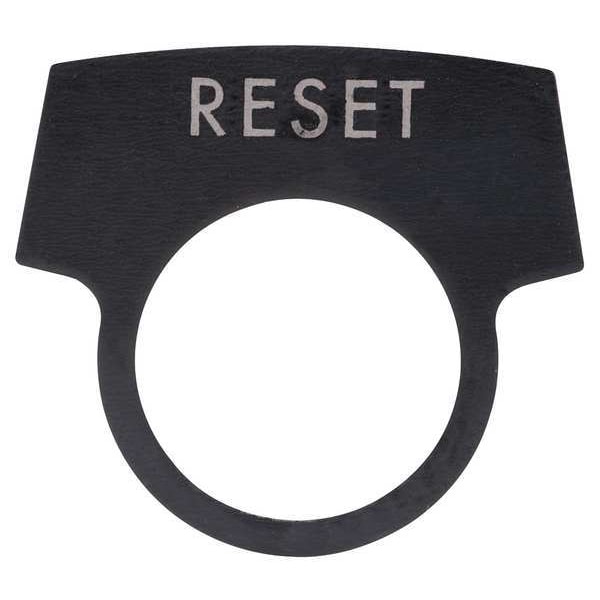

Appleton Electric Legend Plate, Reset, White/Black LNPRESETQ - main

Legend Plate, Reset, White/Black

  • Mfr # LNPRESETQ

  • Zoro # G0118229

product price: $15.69
/ea

Key Features

Material
Aluminum
Color
Black, White Letters
Shape
Half-Round
For Use With
EFD and EFDB Control Stations
Operator Size
30 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LNPRESETQ
Zoro #
G0118229
UPC #
-
Country of Origin
United States

Dimensions

Operator Size
30 mm
Compatible Panel Cutout Diameter
30 mm

Details

Item
Legend Plate
Material
Aluminum
Color
Black, White Letters
Shape
Half-Round
For Use With
EFD and EFDB Control Stations
Legend/Background Color
White/Black
Legend
Reset
Product Type
Legend Plate
SPBB Standard Materials and Finishes
Push button upper barrel is copperfree (4/10 of 1% max.) aluminum with a natural finish; lower barrel is phenolic with nylon plastic button (dust cap models have neoprene buttons)
N1 Series NEC Certifications and Compliances
Class I, Division 1 and 2, Groups C, D; NEMA 3R, 4X, 7CD, 12
Optional Lockout
Stainless steel selector switch lockout, locks two or three position handle in any position. Securing rod for push button units. See catalog pages for details
Nameplate Mounting Bracket
Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.
N2 Series NEC Certifications and Compliances
Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3R, 4X, 9EFG, 12
Pilot Light Options
Pilot light jewel/guard assembly is available in amber, blue, clear, green and opal. LED jewel/guard assembly is available in red, amber and green. See catalog pages for details
Modified Operation Three Position Selector Switches
Momentary contact right position, spring return to center, maintained contact left position. Momentary contact left position, spring return to center, maintained contact right position. Alternate contacts available. See catalog pages for details
N1 and N1 Standard Materials and Finishes
30% glass-reinforced thermoplastic polyetherimide. Teflon coated stainless steel cover bolts and Mylar nameplates.
SSBA Standard Materials and Finishes
Selector switch operator mechanism is copperfree (4/10 of 1% max.) aluminum with a natural finish; nylon cam; and sealed phenolic contact block
SPLS Standard Materials and Finishes
Pilot light guard and body assembly is copperfree (4/10 of 1% max.) aluminum with a natural finish; steel clamping ring; and tempered glass jewel
Compatible with Series
N1, N2
Language
English
Keyway Type
No Keyway
Legend Color
White
Background Color
Black

Description

Legend Plate, Half-Round, Legend Reset, For Use With EFD and EFDB Control Stations, Legend/Background Color White/Black, Material Aluminum
