  13. Motor Starter, NonRev ATL, Size 0,480VAC

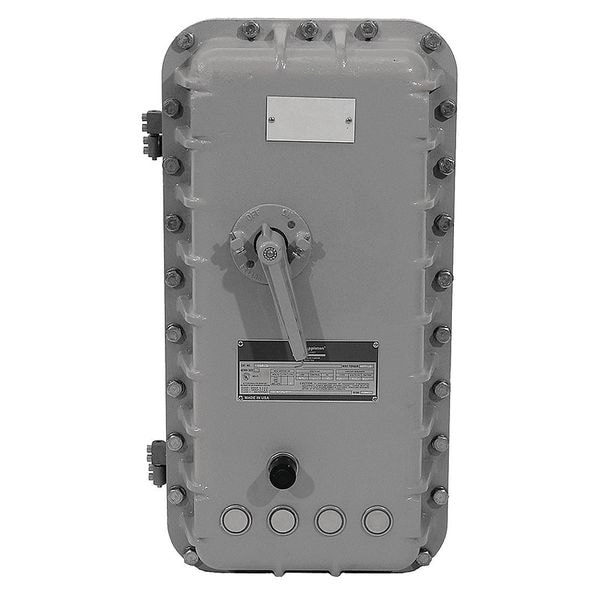

Appleton Electric Motor Starter, NonRev ATL, Size 0,480VAC AE0BA4W1 - main

Motor Starter, NonRev ATL, Size 0,480VAC

  • Mfr # AE0BA4W1

  • Zoro # G2258658

product price: $3,084.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.

Key Features

NEMA Size
0
Amps AC
18
Coil Volts
120V AC
Enclosure NEMA Rating
4, 4X, 7BCD, 9EFG
Auxiliary Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AE0BA4W1
Zoro #
G2258658
UPC #
-
Country of Origin
United States

Dimensions

NEMA Size
0
Depth
11.06 in
Conduit Size
1 1/2 in
Width
14.13 in
Height
16.63 in
Overall Width
14.13 in
Overall Height
16.63 in
Overall Depth
11.06 in

Details

Item
Full Voltage Motor Starter
Amps AC
18
Coil Volts
120V AC
Enclosure NEMA Rating
4, 4X, 7BCD, 9EFG
Auxiliary Contact Form
1NO/1NC
Operator
Handle
Trip Class
20
Standards
CEC, IEC Zone System Class I, Zone 1 and 2, Group IIB + H2, NEC
Hz
60
Starter Type
Nonreversing
Description/Special Features
Copperfree Cast Aluminum. Ground Lug Package and Installation Instructions for Termination of Ground Wire Enclosed. Standard Outlets Top and Bottom., Dust-Ignitionproof, Explosionproof, Watertight
Includes
Block Hinges, Breaker, Cover Bolts, O-Ring, Operator Shaft
Line Voltage
480V AC
Max. HP
5 hp
Type
NEMA
Operator Function
Start/Stop
Number of Poles
3
Starter Style
NEMA
Reversing Capability
Non-Reversing
Series
AEB
NEMA Enclosure Rating
4X
Horsepower @ Single Phase - 120V AC
1 hp
Number of Auxillary Contacts
8
Horsepower @ Three Phase - 208V AC
3 hp
Maximum Voltage Rating
480V AC
Resistance Properties
Corrosion Resistant
Auxiliary Contact Module Capacity
4
Overload Protection Type
Electronic
Horsepower @ Three Phase - 480V AC
5 hp
Horsepower @ Three Phase - 600V AC
5 hp
Coil Voltage
120V AC
Horsepower @ Three Phase - 240V AC
3 hp
Current AC
18 A
Mounting Style
Bolt-On Slotted Mounting Feet
Horsepower @ Single Phase - 240V AC
Not Rated
Frequency
60 Hz
Includes Auxiliary Contacts
No
Phase
Three
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2

Description

Full Voltage Motor Starter, Includes Auxiliary Contacts No, Maximum Overload Relay Current Setting Not Applicable, Overload Protection Type Electronic, Minimum Overload Relay Current Setting Not Applicable, Trip Class 20, Series AEB, Number of Poles 3, Number of Auxillary Contacts 8, Phase Three, Operator Handle, Operator Function Start/Stop, Mounting Style Bolt-On Slotted Mounting Feet, Auxiliary Contact Form 1NO/1NC, Starter Style NEMA, Reversing Capability Non-Reversing
