  10. /
  11. Pin & Sleev Plug, 20A, 3P, 2W, Alum, 125/250V
Shop All Hazardous Location Plugs
Appleton Electric

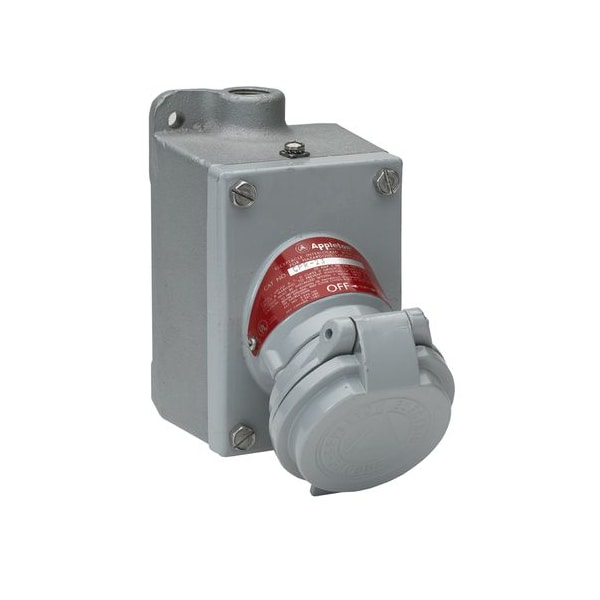

Pin & Sleev Plug, 20A, 3P, 2W, Alum, 125/250V

product price: $201.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120/240V AC
  • Amps 20 A
  • Standards cULus E10784, UL 1010, UL 1203, UL 894
  • HP 1 hp
  • Number of Wires 2
See all product information

Product Information

Dimensions

Overall Length 4.81 in
Outside Diameter 1.86 in
For Minimum Cable Diameter 0.538 in
For Maximum Cable Diameter 0.639 in
Face Diameter 1.56 in
Plug Cable Diameter .538- .639

Details

Item Pin and Sleeve Plug
Voltage 120/240V AC
Amps 20 A
Standards cULus E10784, UL 1010, UL 1203, UL 894
HP 1 hp
Number of Wires 2
Number of Poles 3
Material Copper-Free Aluminum
Features Plug and Receptacles are Supplied with Pressure Terminal Connectors
For Environment Corrosive, Damp, Hazardous Location
Voltage Rating 125 to 250V AC
Horsepower Rating 1 hp
Housing Material Metallic
Current Rating 20 A
Hazardous Location Specification Class I, Div 1 and 2, Group C, D
Insulation Material Fiberglass-Reinforced Polyester
Compatible with Series Contender(TM) CPS
Housing Material Finish Epoxy Coat with Powder Finish
Grounding Grounded
Pin & Sleeve Standards cUL Listed, UL Listed
Connection Orientation Straight
Cap Type No Cap or Cover
Housing Color Gray
Switch Rated No
Phase Single
Reverse Service No
Mounting Box Entries Dead-End or Feed-Thru
Amperage 20
Horsepower Ratings 1
Hazardous Area Classification Class I, Division 1 and 2, Groups C, D
Materials and Finishes Receptacle cover and CPP plug is copperfree (4/10 of 1% max.) aluminum with epoxy powder coat. Mounting box is malleable iron with triple-coat. Insulating blocks are fiberglass reinforced polyester.

Description

Pin and Sleeve Plug, Current Rating 20 A, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Horsepower Rating 1 hp, Housing Color Gray, Number of Poles 3, Number of Wires 2, Phase Single, Voltage Rating 125 to 250V AC, Cap Type No Cap or Cover, Connection Orientation Straight, Face Diameter 1.56 in, For Maximum Cable Diameter 0.639 in, For Minimum Cable Diameter 0.538 in, Grounding Grounded, Housing Material Copper-Free Aluminum, Outside Diameter 1.86 in, Reverse Service No
