Shop APPLETON ELECTRIC

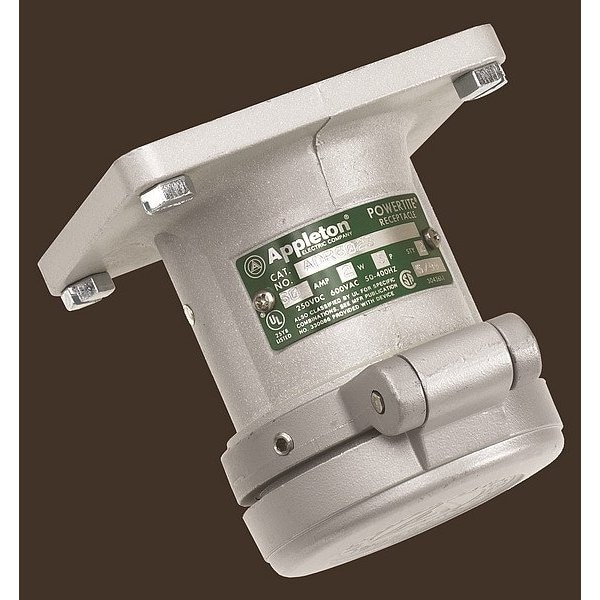

PinandSleeveReceptacle, 60A, 50hp, Gry, Alum

  • Mfr # ADR6034RS

  • Zoro # G622639258

product price:
$
539.99
/ea
Free Shipping & Returns

Key Features

Polarized
Yes
For Minimum Cable Diameter
0.5 in
Minimum Wire Size
6 AWG
Phase
Three
Voltage Rating
250V DC, 600V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ADR6034RS
Zoro #
G622639258
UPC #
781381710930
Country of Origin
Mexico

Dimensions

For Minimum Cable Diameter
0.5 in
Minimum Wire Size
6 AWG
Maximum Wire Size
2 AWG
Hub Diameter
2 in
For Maximum Cable Diameter
1.375 in

Details

Polarized
Yes
Phase
Three
Voltage Rating
250V DC, 600V AC
Flange Type
Flanged
Number of Poles
4
Grounding Style
Style 1
Shrouded
Yes
Housing Color
Gray
GFCI
No
Minimum Operating Temperature
-13 Degrees F
IP Rating
Not Rated
Housing Material
Aluminum
Number of Gangs
1
Insulation Material
Glass Filled Polyester
Number of Wires
3
Current Rating
60 A
Item
Pin and Sleeve Receptacle
Horsepower Rating
50 hp
Power Indicating Light
No
Housing Material Finish
Epoxy Powder Coated
For Environment
Hazardous Location
Resistance Properties
Weather Resistant
Reverse Service
Yes
Wire Connection Type
Screw Terminals
Grounding
Grounded
Standards
CSA, cULus, UL
NEMA Enclosure Rating
4X
Features
Features Widely Spaced Contacts Recessed Within an Internal Arc Snuffing Chamber Insulating Blocks and a Durable Neoprene Sealing Bushing
Maximum Operating Temperature
104 Degrees F

Description

Pin and Sleeve Receptacle, Current Rating 60 A, Flange Type Flanged, Grounding Style Style 1, Hazardous Location Specification Not Applicable, IP Rating Not Rated, NEMA Enclosure Rating 4X, Number of Gangs 1, Number of Poles 4, Number of Wires 3, Phase Three, Shrouded Yes, Voltage Rating 250V DC, 600V AC, Grounding Grounded, Horsepower Rating 50 hp, Housing Color Gray, Housing Material Aluminum, Maximum Wire Size 2 AWG, Minimum Wire Size 6 AWG, Power Indicating Light No
