Shop APPLETON ELECTRIC

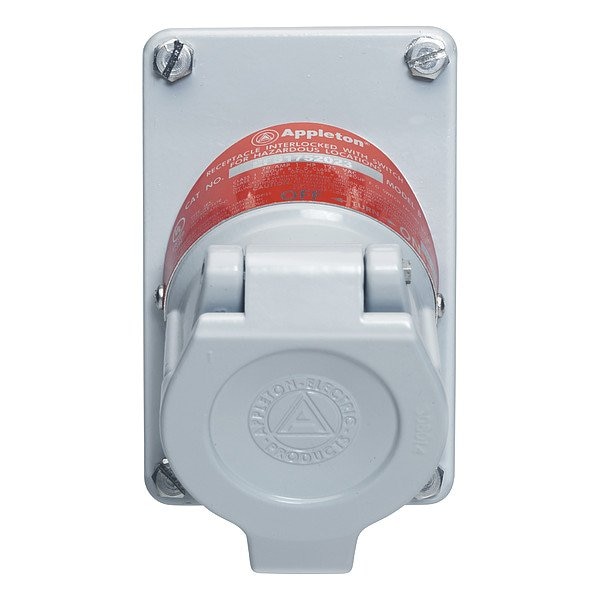

Receptacle, 20A, 125VAC, Gray, Aluminum

  • Mfr # EFS1752023
  • Zoro # G922706209
product price:
$
512.99
/ea
Free Shipping & Returns

Key Features

Contact Material
Brass
Overall Depth
5.6 in
Horsepower Rating
1 hp
Hub Type
Dead End
NEMA Enclosure Rating
3, 3R, 3RX, 4X, 7BCD, 9FG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EFS1752023
Zoro #
G922706209
UPC #
781381279703
Country of Origin
Mexico

Dimensions

Overall Depth
5.6 in
Mount Hole Center-to-Center Width
2.8 in
Flange Height
6.5 in
Mount Hole Center-to-Center Height
5.6 in

Details

Contact Material
Brass
Horsepower Rating
1 hp
Hub Type
Dead End
NEMA Enclosure Rating
3, 3R, 3RX, 4X, 7BCD, 9FG
Number of Gangs
1
AFCI
No
Number of Poles
3
Item
Receptacle
Current Rating
20 A
Housing Color
Gray
Housing Material
Aluminum
Grade
Marine
Resistance Properties
Corrosion Resistant
Features
Appleton(TM) U-Line(TM) 20 a Factory Sealed Plugs and Receptacles are Ideal for use in Damp or Corrosive Conditions where Receptacles are Used with Stationary or Portable Electrically Operated Devices, The ECP Plug is Suitable for use in such Areas where Ignitable Gases are Present, The Insulators Provide Superior Dielectric and Mechanical Strength and Lowest Arc Tracking, The NCP Plug is Ideal where Moisture or Corrosion is a Constant Problem, These Explosionproof, Dust-Ignition proof Receptacles offer a Dead Front Design, Ensuring it is not Energized Until Plug is Fully Inserted and the Switch is Engaged
GFCI
Yes
Series
U-Line(TM)
Grounding
Grounded
Voltage Rating
125V AC
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G
Number of Wires
2
Standards
CSA, UL

Description

Receptacle, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Housing Color Gray, Housing Material Aluminum, NEMA Enclosure Rating 3, 3R, 3RX, 4X, 7BCD, 9FG, Number of Gangs 1, Number of Poles 3, Number of Wires 2, Resistance Properties Corrosion Resistant, Standards CSA, UL, Voltage Rating 125V AC, AFCI No, Horsepower Rating 1 hp, IP Rating Not Applicable
