Rocker Cover/Chamber, 2-Pole, 1Gang, 30A

Switch Cover

2 hp @ 120/240V AC

2-Pole

EDS Series Tumbler Switches

On/Off

120/277V AC

UL 894, UL 1203, UL Listed for Class I, Division 1 and 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G; and Class III

1

Momentary Rocker Arm

30 A

Malleable Iron

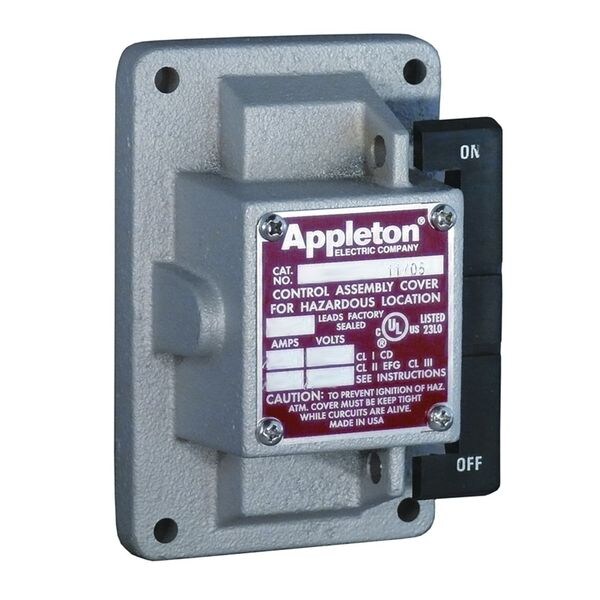

Malleable Iron Cover, Rocker Operator, 2-Pole, 30A Switch

Tumbler switches have a triple-coat finish (1) zinc electroplate, (2) chromate, and (3) epoxy powder coat

Malleable iron body and covers. Copperfree (4/10 of 1% max.) aluminum sealing chamber (on select models). Nylon 6/6 handle. Corrosion resistant stainless steel nameplate mounting bracket (optional)

Make circuit description/identification easy and eliminate costly field installation (drilling/tapping) to accommodate circuit identification nameplates by using our bracket accessory. See catalog.

Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3, 7 BCD, 9EFG

1- or 2-gang copperfree (4/10 of 1% max.) aluminum bodies and covers available. See catalog pages for details

On/Off

EDS

Front Cover with Switch

Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2

Tumbler Switches
