  13. Tumbler Switch, EDSC Series, 1 Gang, 2-Pole

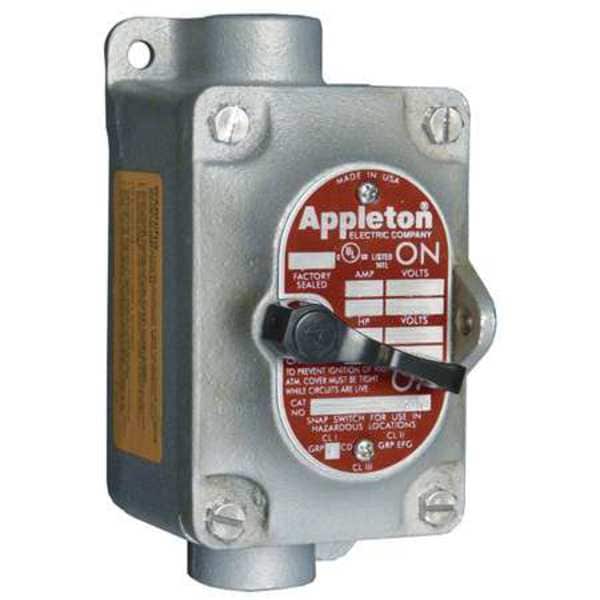

Appleton Electric Tumbler Switch, EDSC Series, 1 Gang, 2-Pole EDSC3593 - main

Tumbler Switch, EDSC Series, 1 Gang, 2-Pole

  • Mfr # EDSC3593

  • Zoro # G5900535

product price: $405.99
/ea
Free Shipping & Returns

Key Features

Series
EDS
Type of Operator
Front Operated
Number of Gangs
1
Switch Type
2-Pole
Amps
30 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EDSC3593
Zoro #
G5900535
UPC #
078138169944
Country of Origin
Mexico

Dimensions

Hub Size
1 in
Width
3 in
Depth
4 11/16 in
Height
4 5/8 in
Overall Width
3 in
Overall Depth
4.68 in
Overall Height
4.62 in

Details

Item
Tumbler Switch
Series
EDS
Type of Operator
Front Operated
Number of Gangs
1
Switch Type
2-Pole
Amps
30 A
Voltage
120 to 277V AC
HP
2 hp @ 120/240V AC
Hub Style
Feed-Thru
Legend Markings
On/Off
Safety Rating
Class I, Division 1, Groups C, D; Class I, Division 2, Groups C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
NEMA Rating
7C, 7D, 9E, 9F, 9G
Mounting
Mounting Holes
Standards
UL 1203, UL 894
Special Features
Corrosion Resistant, Pad Lockable in the On or Off Position
Body Material
Malleable Iron
Actuator Style
Front Lever
Horsepower @ 240V AC
2 hp
NEMA Enclosure Rating
3, 7, 9
Hazardous Location Specification
Class I, Div 1, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Number of Poles
2
Current Rating
30 A
Mounting Orientation
Vertical
Voltage Rating - Maximum
277 V AC
Horsepower @ 120V AC
2 hp
Resistance Properties
Corrosion Resistant, Dust Ignition Proof, Explosion Proof

Description

Tumbler Switch, Front Operated, Series EDS, Number of Gangs 1, Switch Type 2-Pole, Amps 30 A, Voltage 120 to 277V AC, HP 2 hp @ 120/240V AC, Hub Style Feed-Thru, Hub Size 1 in, Mounting Mounting Holes, Legend Markings On/Off, Special Features Corrosion Resistant, Pad Lockable in the On or Off Position, NEMA Rating 7C, 7D, 9E, 9F, 9G, Standards UL 1203, UL 894, Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
