Shop All TIG Welding Accessories
Aquasol

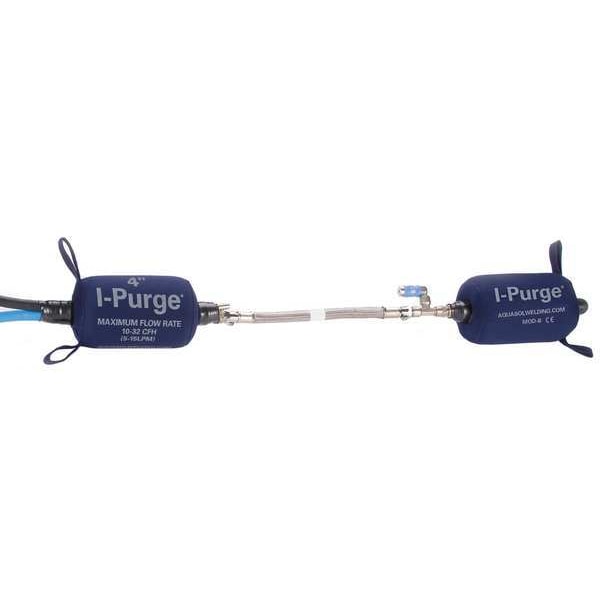

Inflatable Purge Bladder, 4 In Dia

product price: $385.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material Polyurethane-Coated Nylon
  • For Use With EZ Zone Tape
  • Features I-purge Is The Reusable, Economical And Long Term Solution For Pipe Purging. I-purge Inflatable Purge Bladder System Is Comprised Of Two Inflatable Lightweight Polyurethane-coated Nylon Covered Dams, Connected By A Braided Tube. Ideal For Purging Multiple Pipes Of The Same Diameter And Fabrication Applications. Available In Custom Sizes Upon Request. Suitable For Standard Welding Applications Up To 392 Degrees F Or 200 Degrees C. Adjust The Flow Meter To Approximately 10-15 Cfh (5-8 Lpm) Initally And Upwards To 30 Cfh (15 Lpm) During Operation.
  • Application MIG/TIG Welding, Purging
  • Resistance Properties Spark Resistant
See all product information

Product Information

Dimensions

Diameter 4 in
Compatible Pipe Diameter (Maximum) 4 in
Harness Length 11 in

Details

Item Inflatable Purge Bladder
Material Polyurethane-Coated Nylon
For Use With EZ Zone Tape
Features I-purge Is The Reusable, Economical And Long Term Solution For Pipe Purging. I-purge Inflatable Purge Bladder System Is Comprised Of Two Inflatable Lightweight Polyurethane-coated Nylon Covered Dams, Connected By A Braided Tube. Ideal For Purging Multiple Pipes Of The Same Diameter And Fabrication Applications. Available In Custom Sizes Upon Request. Suitable For Standard Welding Applications Up To 392 Degrees F Or 200 Degrees C. Adjust The Flow Meter To Approximately 10-15 Cfh (5-8 Lpm) Initally And Upwards To 30 Cfh (15 Lpm) During Operation.
Application MIG/TIG Welding, Purging
Resistance Properties Spark Resistant
Standards CE Approved
Process Purging Multiple Pipes
Exterior Bag Material Polyurethane-Coated Nylon
Bladder Design Double Purge Bag System with High Heat Harness
Maximum Temperature 250 Degrees F
Gas Flow Rate (Maximum) 30 cfh

Description

Inflatable Purge Bladder, Compatible Pipe Diameter (Maximum) 4 in, Harness Length 11 in, Maximum Temperature 250 Degrees F, Gas Flow Rate (Maximum) 30 cfh, Features Connected By a Braided Tube, Reusable, Bladder Design Double Purge Bag System with High Heat Harness, Exterior Bag Material Polyurethane-Coated Nylon, Process Purging Multiple Pipes, Resistance Properties Spark Resistant, Standards CE Approved
