Shop A.R. NORTH AMERICA

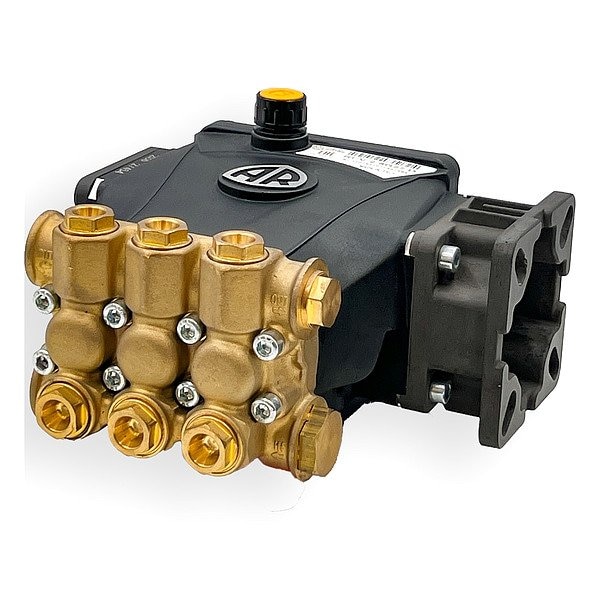

Pressure Plunger Pump, 3,400 RPM, Horizontal Gas Engine, Ceramic

  • Mfr # RCV25G27D-F7-PKG

  • Zoro # G310474512

product price:  $273.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Flow Rate (Maximum)
2.5 gpm
Required Electric Motor Horsepower (Maximum)
4 3/5 hp
Power Source
Gasoline Engine
Discharge Pressure (Maximum)
2,700 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RCV25G27D-F7-PKG
Zoro #
G310474512
UPC #
192216236936
Country of Origin
China

Dimensions

Discharge Connection Size
3/8 in
Shaft Outer Diameter
3/4 in
Intake Connection Size
1/2 in
Inlet Diameter
1/2 in
Discharge Diameter
3/8 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Flow Rate (Maximum)
2.5 gpm
Required Electric Motor Horsepower (Maximum)
4 3/5 hp
Power Source
Gasoline Engine
Discharge Pressure (Maximum)
2,700 psi
Shaft Type
Hollow
Discharge Connection Type
NPT
Piston Design
Triplex
Operating Pressure (Maximum)
2,700 psi
Required Gasoline Engine Horsepower (Maximum)
7 1/5 hp
Motor Speed (Maximum)
3,400 RPM
Intake Connection Type
FNPT
Drive Type
Direct-Mount
Pump Head Material
Forged Brass
Plunger Material
Ceramic
Flange Type
Horizontal Gas Engine
Number of Pistons
3
Number of Plungers
3
Drive Shaft Connection Type
Keyed
Pumping Element Layout
Inline
Engine Shaft Orientation
Horizontal
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Series
RC Series
Media Temperature - Maximum
140 Degrees F
Rated Speed
3,400 RPM
Connecting Rod Material
Zinc-Aluminum
Shaft Seal Material
Buna-N
Manifold Material
Forged Brass
Engine Mounting Flange Type
SAE J609
Power Source - TS Only
Gasoline Engine

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 2,700 psi, Flow Rate (Maximum) 2.5 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 3,400 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 4 3/5 hp, Required Gasoline Engine Horsepower (Maximum) 7 1/5 hp, Lubrication Oil Bath, Shaft Outer Diameter 3/4 in
