Shop A.R. NORTH AMERICA

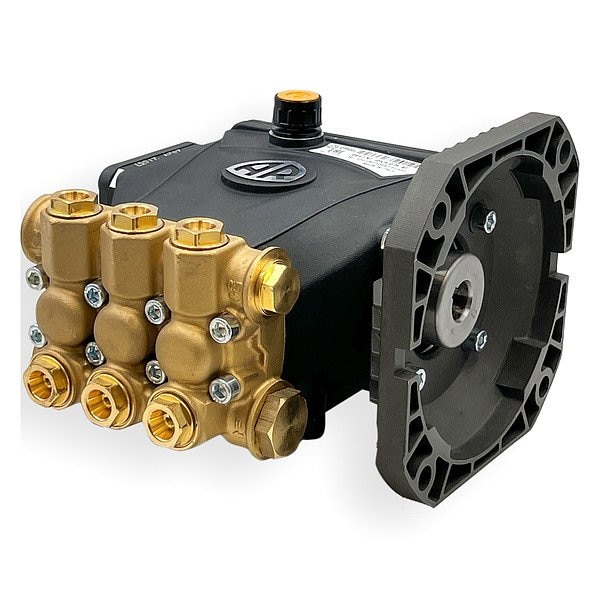

Pressure Plunger Pump, Electric Motor, 3, 3 hp

  • Mfr # RCA2G22E-F8-PKG

  • Zoro # G010474508

product price:  $390.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Shaft Type
Hollow
Pump Head Material
Forged Brass
Shaft Outer Diameter
5/8 in
Required Gasoline Engine Horsepower (Maximum)
4 7/10 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RCA2G22E-F8-PKG
Zoro #
G010474508
UPC #
192216234390
Country of Origin
Italy

Dimensions

Shaft Outer Diameter
5/8 in
Discharge Connection Size
3/8 in
Intake Connection Size
1/2 in
For Electric Motor Frame Size
56C
Inlet Diameter
1/2 in
Discharge Diameter
3/8 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Shaft Type
Hollow
Pump Head Material
Forged Brass
Required Gasoline Engine Horsepower (Maximum)
4 7/10 hp
Discharge Connection Type
NPT
Flange Type
Horizontal Plunger Pump
Piston Design
Triplex
Motor Speed (Maximum)
1,750 RPM
Operating Pressure (Maximum)
2,200 psi
Flow Rate (Maximum)
2 gpm
Intake Connection Type
FNPT
Discharge Pressure (Maximum)
2,200 psi
Plunger Material
Ceramic
Drive Type
Direct-Mount
Number of Pistons
3
Power Source
Electric Motor
Required Electric Motor Horsepower (Maximum)
3 hp
Engine Shaft Orientation
Horizontal
Series
RC Series
Shaft Seal Material
Buna-N
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Connecting Rod Material
Zinc-Aluminum
Pumping Element Layout
Inline
Manifold Material
Forged Brass
Media Temperature - Maximum
140 Degrees F
Rated Speed
1,750 RPM
Drive Shaft Connection Type
Keyed
Number of Plungers
3
Power Source - TS Only
Electric Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 2,200 psi, Flow Rate (Maximum) 2 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,750 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 3 hp, Required Gasoline Engine Horsepower (Maximum) 4 hp, Lubrication Oil Bath, Shaft Outer Diameter 5/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
