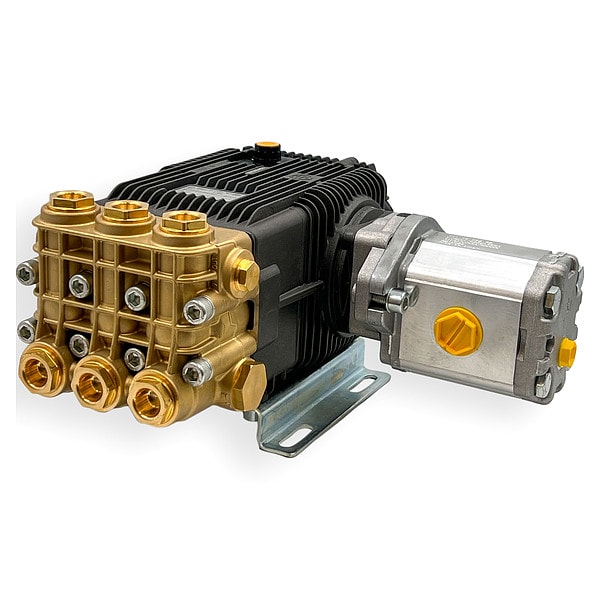

Pressure Plunger Pump, Hydraulic, FNPT, Horizontal Hydraulic Drive

  • Mfr # HYD-XW3010

  • Zoro # G610474502

product price:
$
1,600.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Discharge Connection Type
NPT
Flange Type
Horizontal Hydraulic Drive
Piston Design
Triplex
Power Source
Hydraulic Motor
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HYD-XW3010
Zoro #
G610474502
UPC #
192216216068
Country of Origin
Italy

Dimensions

Discharge Connection Size
3/8 in
Intake Connection Size
3/4 in
Shaft Outer Diameter
5/8 in
Inlet Diameter
3/4 in
Discharge Diameter
3/8 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Discharge Connection Type
NPT
Flange Type
Horizontal Hydraulic Drive
Piston Design
Triplex
Power Source
Hydraulic Motor
Required Gasoline Engine Horsepower (Maximum)
18 9/10 hp
Motor Speed (Maximum)
1,450 RPM
Shaft Type
Hollow
Drive Type
Hydraulic
Plunger Material
Ceramic
Pump Head Material
Forged Brass
Number of Pistons
3
Required Electric Motor Horsepower (Maximum)
12 1/10 hp
Flow Rate (Maximum)
8 gpm
Discharge Pressure (Maximum)
2,200 psi
Operating Pressure (Maximum)
2,200 psi
Intake Connection Type
FNPT
Number of Plungers
3
Hydraulic Motor Pressure - Maximum
2,610 psi
Hydraulic Motor Flow Rate - Maximum
9.5 gpm
Pumping Element Layout
Inline
Connecting Rod Material
Zinc-Aluminum
Hydraulic Motor Mounting Bolt Pattern
2-Bolt
Manifold Material
Forged Brass
Media Temperature - Maximum
140 Degrees F
Series
XW Series
Rated Speed
1,450 RPM
Drive Shaft Connection Type
Keyed
Pump Drive Configuration
Hydraulic-Driven
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Shaft Seal Material
Buna-N
Hydraulic Motor Mounting Flange Type
SAE A
Compatible Drive Method
Hydraulic Drive
Engine Shaft Orientation
Horizontal
Power Source - TS Only
Hydraulic Motor
Power Source - old
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 2,200 psi, Flow Rate (Maximum) 8 gpm, Intake Connection Size 3/4 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,450 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 12 1/10 hp, Required Gasoline Engine Horsepower (Maximum) 16 hp, Lubrication Oil Bath, Shaft Outer Diameter 5/8 in
