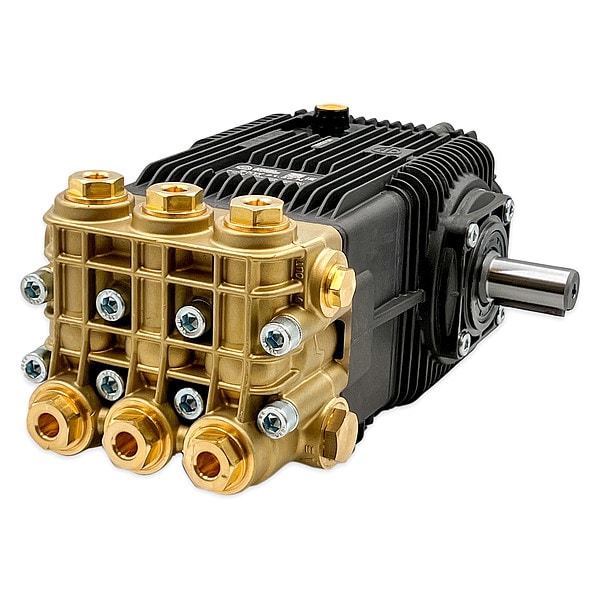

Pressure Plunger Pump, Solid Shaft, 5.55 gpm, 20 hp

  • Mfr # SXW21.350-PKG

  • Zoro # G710474495

product price:  $893.99
/ea
Free Shipping & Returns

Key Features

Lubrication
Oil Bath
Plunger Material
Ceramic
Required Electric Motor Horsepower (Maximum)
20 hp
Intake Connection Size
1/2 in
Operating Pressure (Maximum)
5,100 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SXW21.350-PKG
Zoro #
G710474495
UPC #
192216220683
Country of Origin
Italy

Dimensions

Intake Connection Size
1/2 in
Discharge Connection Size
3/8 in
Shaft Outer Diameter
24 mm
Inlet Diameter
1/2 in
Discharge Diameter
3/8 in

Details

Item
Pressure Plunger Pump
Lubrication
Oil Bath
Plunger Material
Ceramic
Required Electric Motor Horsepower (Maximum)
20 hp
Operating Pressure (Maximum)
5,100 psi
Shaft Type
Solid
Flow Rate (Maximum)
5.5 gpm
Flange Type
Horizontal Gas Engine
Drive Type
Belt-Drive
Piston Design
Triplex
Intake Connection Type
FNPT
Power Source
Hydraulic Motor
Number of Pistons
3
Discharge Connection Type
NPT
Motor Speed (Maximum)
1,450 RPM
Pump Head Material
Forged Brass
Required Gasoline Engine Horsepower (Maximum)
31 1/5 hp
Discharge Pressure (Maximum)
5,100 psi
Pumping Application
Agriculture and Livestock Washdown, Car and Vehicle Washing, Commercial and Industrial Cleaning, Fogging and Misting, Hydro Blasting and Water Jetting, Manufacturing and Plant Maintenance, Marine and Shipyard Maintenance, Mining, Oil and Gas Services, Paint Removal and Surface Preparation, Pipe Cleaning and Sewer Jetting, Pressure Washing
Drive Shaft Connection Type
Keyed
Engine Shaft Orientation
Horizontal
Compatible Drive Method
Belt Drive, Flex Coupling, Hydraulic Drive
Shaft Seal Material
Buna-N
Pumping Element Layout
Inline
Pump Drive Configuration
Hydraulic-Driven
Manifold Material
Forged Brass
Connecting Rod Material
Zinc-Aluminum
Number of Plungers
3
Rated Speed
1,450 RPM
Series
XW Series
Media Temperature - Maximum
140 Degrees F
Power Source - TS Only
Hydraulic Motor

Description

Pressure Plunger Pump, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Discharge Pressure (Maximum) 5,100 psi, Flow Rate (Maximum) 5.5 gpm, Intake Connection Size 1/2 in, Intake Connection Type FNPT, Motor Speed (Maximum) 1,450 RPM, Piston Design Triplex, Pump Head Material Forged Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 20 hp, Required Gasoline Engine Horsepower (Maximum) 31 1/5 hp, Lubrication Oil Bath, Shaft Outer Diameter 24 mm
