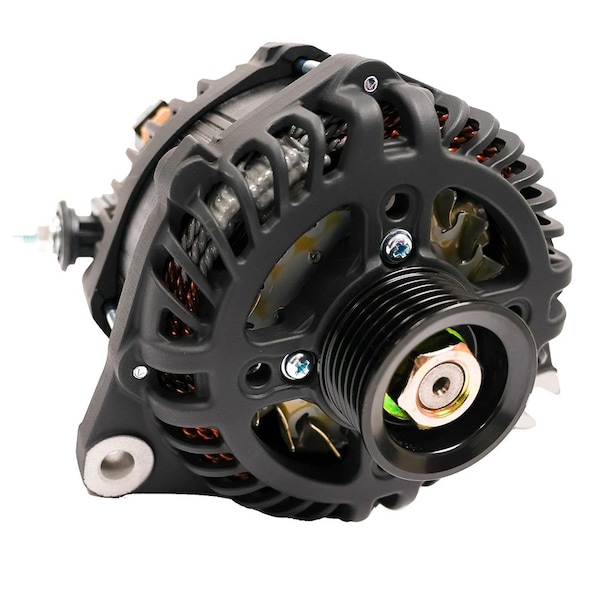

Zeus A275L Transit Alternator w/Terminal Block

Zeus A275L Transit Alternator with Terminal BlockHigh Output / High Amperage Alternator: The Highest Power Output in Its Class.Features:Replace your noisy generator!Engineered for high energy production.Suitable for marine, RV, military, and commercial applications.Rapidly charges large battery banks.Coolest operating temperatures for increased performance:Heat-shedding coatingsRectifier located on housing exteriorDual cooling fansOEM componentsOptimized for performance at idle speedsReduces the need for a generator by creating additional power with your engineUnleash peak performance with E-Coat/Cerakote, keeping the A275L cooler for sustained amperage outputFor maximum performance or lithium battery charging, use the ARCO Zeus Bluetooth Alternator RegulatorMercedes requires the use of a clutch pulley on secondary alternators used on all Sprinter vans. For Mercedes Sprinter, please use our N62 with Clutch Pulley hereSAE J1171 CertifiedModels are available with internal/external voltage regulatorsProudly Specifications:Voltage: 12VField Type: PRotor Poles: 16Stator Size: 138mmFrame Size: LargeWeight: 14.9 lbs / 6.7 kgRegulation: Internal/External IE or External Only EXOutput Voltage: 14.1V defaultFinish: Black Cerakote or E-coatingCut-In RPM: 1,061 Alternator RPMMaximum Alt RPM: 19,000Battery Post: M8 Thread Post, Side MountStandard Pulley: 49K6 6-groove, 49mmPulley Mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5Pulley Hardware: M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer IncludedDiodes: 6 positive, 6 negative, 50A Rated, AvalancheMax Output Cold, 9,000 RPM: 311 AmpsSustained Cruising Output Hot, 6,000 RPM: 227 AmpsSustained Idle Output Hot, 3,000 RPM: 198 AmpsMax Continuous Operating Temperature: 110
