Shop ARMSTRONG

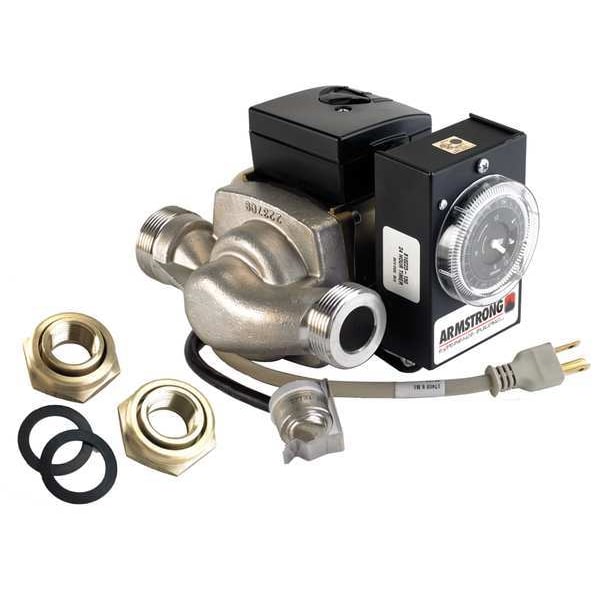

Hot Water Circulator Pump, 1/32 hp, 115, 1 Phase, Sweat Connection

  • Mfr # 110223B-140
  • Zoro # G8509742
product price:
$
648.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Phase
Single
Horsepower
1/32 hp
Inlet/Outlet Size
1-1/4 in
Series
Astro 220SSU050S-TA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
110223B-140
Zoro #
G8509742
UPC #
672807403478
Country of Origin
United States
Item
Circulating Pump
Voltage
115V AC
Phase
Single
Horsepower
1/32 hp
Series
Astro 220SSU050S-TA
Pump Type
Multi-Speed
Number of Speeds
3
Max. GPM @ Head
9.5 gpm @ 0 ft
Maximum Feet of Head
5 ft
Min. GPM @ Head
0 gpm @ 6 ft
Connection Type
Sweat
Features
3 Speed, Compact, High Performance, Maintenance Free
Pump Mount
In Line
Loop Configuration
Open
Mechanical Seal
Wet Rotor
Shaft Material
Ceramic
Compliance
cETL, Low Lead, NSF-372
Standards
ETL, NSF 372
Includes
(2) Gaskets, 6 ft Power Cord, Sweat Unions
Impeller Material
Plastic
Shut-Off
6 ft
Thermal Protection
yes
Best Efficiency GPM @ Head
4 gpm @ 3 ft
Amps
0.29 A
Drive Type
Direct
Nameplate Voltage
115V AC
Compatible Media Type
Water
Rotor Type
Wet
Maximum Operating Pressure
150 psi
Maximum RPM
3,600 RPM
Series Family
Astro HWR
Maximum Flow Rate @ 10 Feet of Head
8 gpm
Frequency
60 Hz
Maximum Media Temperature
230 Degrees F
Body Gasket Material
EPDM
For Use With Potable Systems
Yes
Pump Housing Material
Stainless Steel
Maximum Flow Rate @ 50 Feet of Head
[DELETE]
Maximum Flow Rate @ 5 Feet of Head
0 gpm
Maximum Flow Rate @ 1 Feet of Head
8 gpm
Revolutions Per Minute - Maximum
3,600 RPM
Includes Flange
No Flange Included
Flow Rate - Maximum
10 gpm
Operating Pressure - Maximum
150 psi
Media Temperature - Maximum
230 Degrees F
Includes Volute
No Volute Included
Pump Casing Material
Stainless Steel
Feet of Head - Maximum
5 ft
Full Load Current
0.29 A
Media Temperature - Minimum
32 Degrees F
Includes Union
No Union Included
For Low Lead Compliance Level
CE
Connection Standard
Sweat
NSF Certifications for Food and Drinking Water
NSF 372

Description

Circulating Pump, Compatible Intake Pipe Size 1 1/4 in, Connection Type Sweat, Face to Face Dimension 6 in, Flange or Union Included Not Applicable, For Use With Potable Systems Yes, Horsepower 1/32 hp, Maximum Feet of Head 5 ft, Maximum Flow Rate @ 1 Foot of Head 8 gpm, Nameplate Voltage 115V AC, Number of Speeds 3, Phase Single, Pump Type Multi-Speed, Series Family Astro HWR, Maximum Flow Rate @ 5 Feet of Head 0 gpm, Series Astro 220SSU050S-TA, Amps 0.29 A, Body Gasket Material EPDM
