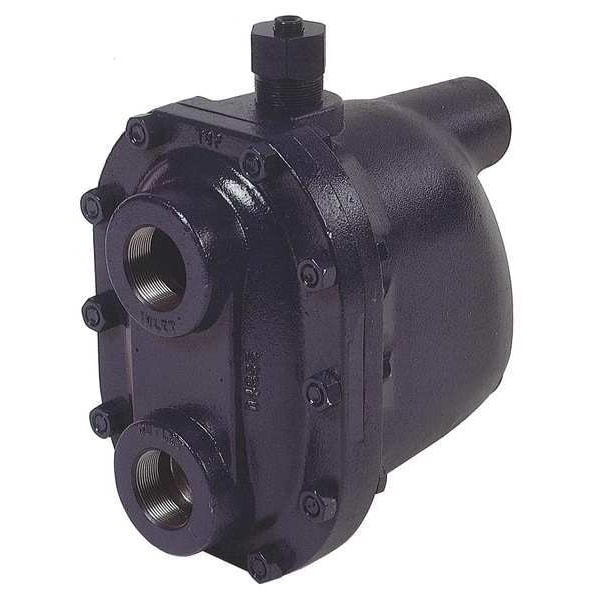

Steam Trap, 15 psi, 650F, 6-5/8 In. L
Mfr # 15JD8
Zoro # G4655874
product price: $2,520.99
/ea
Free Shipping & Returns
Key Features
(F)NPT Connections
2 in
Max. Operating PSI
15 psi
End to End Length
6 5/8 in
Condensate Capacity Lbs/Hr
34,000 lb/hr
Max. Temp.
650 Degrees @ 300 psig
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
15JD8
Zoro #
G4655874
UPC #
-
Country of Origin
United States
Dimensions
End to End Length
6 5/8 in
Overall Width
9 11/16 in
Overall Depth
14 7/8 in
Overall Length
21 in
Port Connection Size
2 in
Description
Steam Trap, Air Vent Material Bronze/Stainless Steel, Allowable Pressure - Maximum 300 psi, Allowable Temperature - Minimum Not Applicable, Application Steam Lines, Body Material Ductile Iron, Condensate Capacity 34,000 lb/hr, Configuration C Pattern, Distance Between Inlet and Outlet Port 6 5/8 in, Float Material Stainless Steel, Includes Air Vent Air Vent Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal, Lever Assembly Material Stainless Steel
