Shop ARMSTRONG INTERNATIONAL

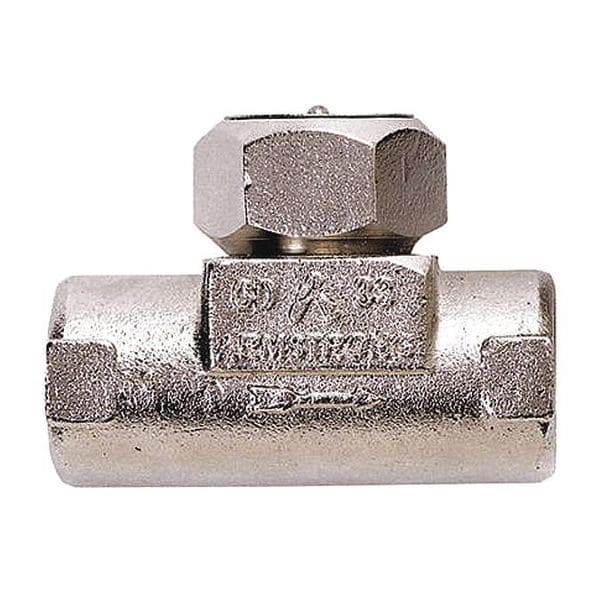

Steam Trap, 600 psi, 752F, 3-15/16 In. L

  • Mfr # CD33-100-600

  • Zoro # G5047174

product price:
$
738.99
/ea
Free Shipping & Returns

Key Features

(F)NPT Connections
1 in
Max. Operating PSI
600 psi
Disc Material
Stainless Steel
End to End Length
3 15/16 in
Condensate Capacity Lbs/Hr
2,500 lb/hr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CD33-100-600
Zoro #
G5047174
UPC #
-
Country of Origin
China
Item
Steam Trap
(F)NPT Connections
1 in
Max. Operating PSI
600 psi
Disc Material
Stainless Steel
Condensate Capacity Lbs/Hr
2,500 lb/hr
Max. Temp.
752 Degrees F
Body Material
Stainless Steel
Type
Disc
Pipe Configuration
Horizontal
Application
Steam Heating, Steam Mains, Process Equipment
Trap Position
Horizontal
Cap Material
Stainless Steel
Manufacturer Series
CD-33
Port Connection Type
NPT
Includes Strainer
Strainer Not Included
Includes Blow Down Valve
Blow Down Valve Not Included
Port Connection Gender
Female
Operating Temperature - Maximum
752 Degrees F
Steam Trap Type
Thermodynamic
Port Types Included
Inlet, Outlet
Operating Pressure - Minimum
3.5 psi
Operating Pressure - Maximum
600 psi
Actuator Material
Stainless Steel
Resistance Properties
Freeze Resistant
Condensate Capacity
2,500 lb/hr
Distance Between Inlet and Outlet Port
3 15/16 in
Configuration
In-line
Number of Ports
3
Installation Orientation
Horizontal/Vertical
Allowable Pressure - Maximum
915 psi
Includes Air Vent
Air Vent Not Included

Description

Steam Trap, Actuator Material Stainless Steel, Allowable Pressure - Maximum 915 psi, Application Steam Heating, Steam Mains, Process Equipment, Body Material Stainless Steel, Cap Material Stainless Steel, Condensate Capacity 2,500 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 3 15/16 in, Includes Air Vent Air Vent Not Included, Includes Blow Down Valve Blow Down Valve Not Included, Includes Strainer Strainer Not Included, Installation Orientation Horizontal/Vertical
