Shop ARMSTRONG INTERNATIONAL

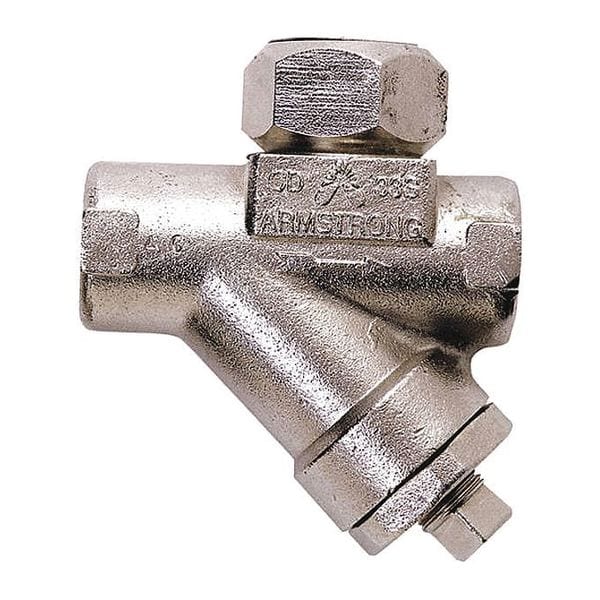

Steam Trap, 600 psi, 752F, 4-1/8 In. L

  • Mfr # CD33S-100-600

  • Zoro # G5047165

product price:
$
843.99
/ea
Free Shipping & Returns

Key Features

(F)NPT Connections
1 in
Max. Operating PSI
600 psi
Disc Material
Stainless Steel
End to End Length
4 1/8 in
Condensate Capacity Lbs/Hr
2,500 lb/hr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CD33S-100-600
Zoro #
G5047165
UPC #
-
Country of Origin
China
Item
Steam Trap
(F)NPT Connections
1 in
Max. Operating PSI
600 psi
Disc Material
Stainless Steel
Condensate Capacity Lbs/Hr
2,500 lb/hr
Max. Temp.
752 Degrees F
Body Material
Stainless Steel
Includes
Integral Strainer
Application
Steam Heating, Steam Mains, Process Equipment
Trap Position
Horizontal
Type
Disc
Pipe Configuration
Horizontal
Resistance Properties
Freeze Resistant
Port Connection Gender
Female
Operating Pressure - Minimum
3.5 psi
Actuator Material
Stainless Steel
Steam Trap Type
Thermodynamic
Installation Orientation
Horizontal/Vertical
Operating Pressure - Maximum
600 psi
Number of Ports
3
Condensate Capacity
2,500 lb/hr
Includes Air Vent
Air Vent Not Included
Configuration
In-line
Port Connection Type
NPT
Distance Between Inlet and Outlet Port
4 1/8 in
Includes Strainer
Strainer Included
Includes Blow Down Valve
Blow Down Valve Included
Manufacturer Series
CD-33
Cap Material
Stainless Steel
Allowable Pressure - Maximum
915 psi
Port Types Included
Inlet, Outlet
Operating Temperature - Maximum
752 Degrees F

Description

Steam Trap, Actuator Material Stainless Steel, Allowable Pressure - Maximum 915 psi, Application Steam Heating, Steam Mains, Process Equipment, Body Material Stainless Steel, Cap Material Stainless Steel, Condensate Capacity 2,500 lb/hr, Configuration In-line, Distance Between Inlet and Outlet Port 4 1/8 in, Includes Air Vent Air Vent Not Included, Includes Blow Down Valve Blow Down Valve Included, Includes Strainer Strainer Included, Installation Orientation Horizontal/Vertical
