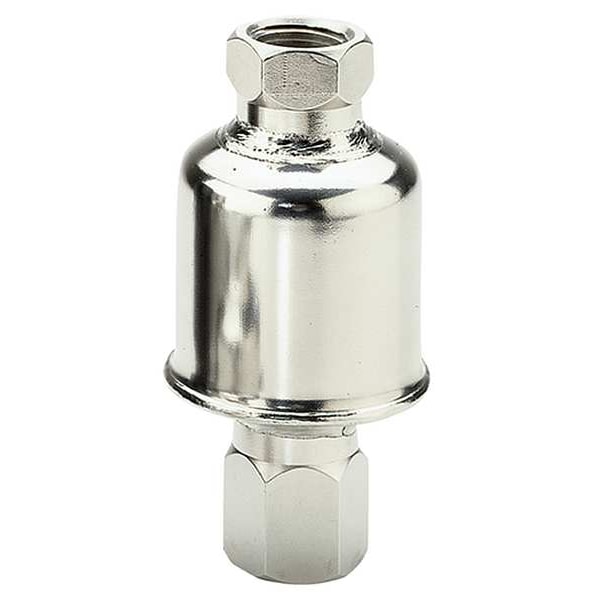

Armstrong International Steam Trap, 650F, 304L Stainless Steel WT-1-075-400 - main

Steam Trap, 650F, 304L Stainless Steel

  • Mfr # WT-1-075-400

  • Zoro # G4662043

product price: $512.99
/ea
Free Shipping & Returns

Key Features

(F)NPT Connections
3/4 in
Max. Operating PSI
400 psi
Condensate Capacity Lbs/Hr
1,300 lb/hr
Max. Temp.
650 Degrees F
Body Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WT-1-075-400
Zoro #
G4662043
UPC #
-
Country of Origin
United States

Dimensions

Outlet Port Connection Size
3/4 in
Inlet Port Connection Size
3/4 in

Details

Item
Steam Trap
(F)NPT Connections
3/4 in
Max. Operating PSI
400 psi
Condensate Capacity Lbs/Hr
1,300 lb/hr
Max. Temp.
650 Degrees F
Body Material
Stainless Steel
Type
Thermostatic
Application
Steam
Pipe Configuration
Horizontal or Vertical
Trap Position
Horizontal or Vertical
Configuration
Straight-Thru
Operating Pressure - Maximum
400 psi
Includes Strainer
Strainer Not Included
Number of Ports
2
Resistance Properties
Corrosion Resistant
Self-Draining
Self-Draining
Steam Trap Type
Thermostatic
Includes Air Vent
Air Vent Not Included
Port Types Included
Inlet, Outlet
Inlet Port Connection Gender
Female
Inlet Port Connection Type
NPT
Installation Orientation
Vertical
Operating Temperature - Maximum
650 Degrees F
Outlet Port Connection Type
NPT
Outlet Port Connection Gender
Female
Distance Between Inlet and Outlet Port
4 13/16 in
Condensate Capacity
1,600 lb/hr

Description

Steam Trap, Application Steam, Body Material Stainless Steel, Condensate Capacity 1,600 lb/hr, Configuration Straight-Thru, Distance Between Inlet and Outlet Port 4 13/16 in, Includes Air Vent Air Vent Not Included, Includes Strainer Strainer Not Included, Inlet Port Connection Gender Female, Inlet Port Connection Size 3/4 in, Inlet Port Connection Type NPT, Installation Orientation Vertical, Nipple Length Not Applicable, Nipple Type Not Applicable, Number of Ports 2
