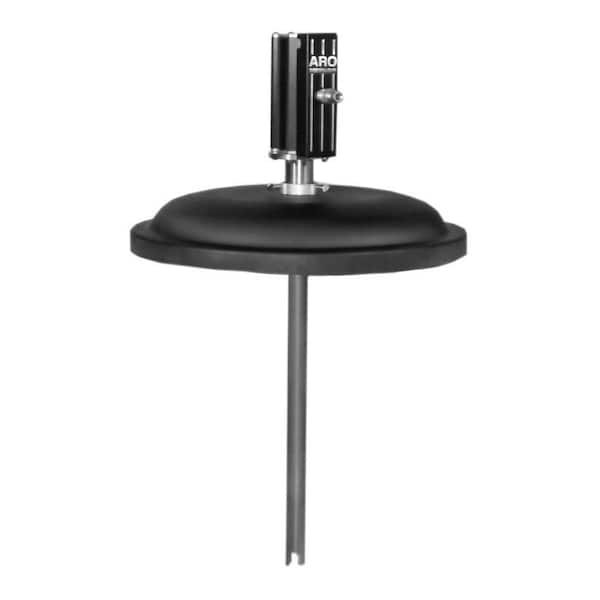

Air Drum Pump, 4 lb/min, 7,500 psi, 50:1

  • Mfr # LP3005-1

  • Zoro # G4572864

product price:  $1,293.99
/ea
Free Shipping & Returns

Key Features

Features
Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment
Housing Material - Pumps
Carbon Steel
Includes
2 in Bung Adapter
Max. Viscosity
250,000 cps
Motor Enclosure
Air
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LP3005-1
Zoro #
G4572864
UPC #
-
Country of Origin
United States

Dimensions

For Container Size
55 gal
Air Inlet Size
1/4 in
Hose Inside Dia.
3/8 in
Hose Length
48 in
Hose Outside Dia.
27/32 in
Hose Outside Diameter
7/8 in
Hose Inside Diameter
3/8 in
Air Inlet Connection Size
1/4 in

Details

Item
Air Drum Pump
Features
Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment
Housing Material - Pumps
Carbon Steel
Includes
2 in Bung Adapter
Max. Viscosity
250,000 cps
Motor Enclosure
Air
Wetted Materials
Carbon Steel, Copper, Hard Stainless Steel, Buna-N, PTFE, Zinc/Aluminum Alloy
Max. Fluid Temp.
180 Degrees F
Metered
Yes
Pump Connection OD
1 1/2 in
Pump Connection ID
1 1/4 in
For Container Type
Drum
Discharge Tube Outlet OD
3/8 in
Noise Level
85 dB
Max. Outlet Pressure
7,500 psi
Pump Connection Type
Immersed
Max. Air Pressure
150 psi
For Media Type
Gear Oil, Motor Oil, Standard and Industrial Greases, Transmission Fluid
Min. Air Pressure
0 psi
Air Consumption
25 cfm
Discharge Tube Outlet ID
1/4 in
Hose Cover Material
Neoprene
Hose Tube Material
Neoprene
Discharge Connection Type
FNPT
Includes Discharge Hose
Yes
Power Source
Air
Includes Nozzle
No
Max. Flow Rate
4 lb/min
Diesel Exhaust Fluid Compatible
No
Ratio
50:1
Suction Tube OD
3/4 in
Maximum Viscosity
250,000 cps
Maximum Fluid Temperature
180 Degrees F
Wetted Material
Aluminum Alloy/Buna-N/Carbon Steel/Copper/PTFE/Stainless Steel/Zinc
Housing Material
Steel
Maximum Air Pressure
150 psi
Minimum Air Pressure
0 psi
Pressure Ratio
50:1
Includes Bung Adapter
Yes
Maximum Flow Rate
4 lb/min
Maximum Outlet Pressure
7,500 psi
Power Source - TS Only
Air

Description

Grease Pump, Max. Air Pressure 150 psi, Discharge Connection Type FNPT, Features Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment, Air Consumption 25 cfm, Hose Length 4 ft, Includes Discharge Hose Yes, Motor Enclosure Air, Noise Level 85 dB, Max. Viscosity 250,000 cps, Includes Nozzle No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
