Aro

Air Regulator, 3/4 In NPT, 293 cfm, 250 psi

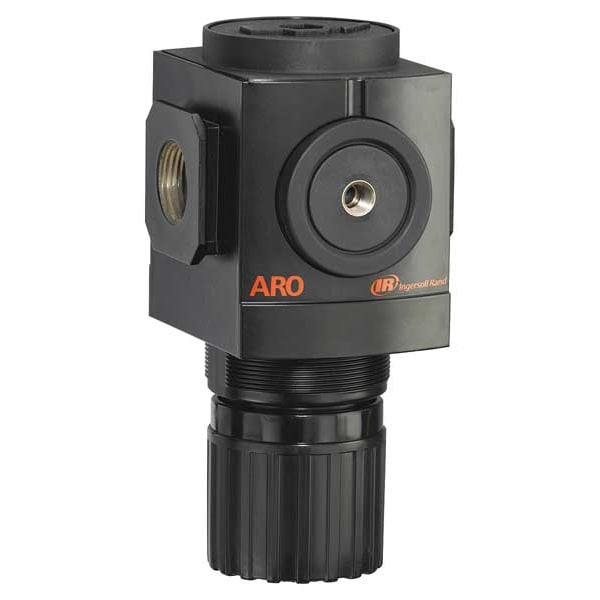

Aro Air Regulator, 3/4 In NPT, 293 cfm, 250 psi R37451-100
Tap to zoom
Hover or click to zoom
$142.61
  • Item: Compressed Air Regulator
  • Includes: Panel Nut
  • Gauge Port: 1/8 in NPT
See full product details
This item ships free.
Total: $142.61

Aro #R37451-100 Specifications

  • Item: Compressed Air Regulator
  • Includes: Panel Nut
  • Gauge Port: 1/8 in NPT
  • Overall Length: 3.25 in
  • Overall Height - Regulators: 7.25 in
  • Max. Flow (Regulators): 293 cfm
  • Pipe Size (Regulators): 3/4"
  • Overall Height (Regulators): 7.25"
  • Pipe Size - Regulators: 3/4 in
  • Max. Temp. (Regulators): 140 Degrees F
  • Compressed Air Regulator Product Grouping: General Purpose Air Regulator
  • Max. Inlet Pressure - Regulators: 250 psi
  • Overall Width (Regulators): 4.09"
  • Max. Inlet Pressure (Regulators): 250 psi
  • Overall Width - Regulators: 4.09 in
  • Max. Flow - Regulators: 293 cfm
  • Series: 3000
  • Adjustment Range - Regulators: 0 to 140 psi
  • Max. Temp. - Regulators: 140 Degrees F
  • Body Material: Aluminum
  • Valve Design: Balanced
  • Adjustment Range (Regulators): 0 to 140 psi
  • Adjustment Knob: Standard
  • Regulator Type: Relieving
  • Adjustment Mechanism Material: Acetal
  • Air Inlet Type: NPT
  • Duty Rating: Heavy Duty
  • Pressure Gauge Port Type: NPT
  • Standards: ATEX Directive 94/9/EEC or 2014/34/EU, IRITS-1215-197
  • Maximum Flow Rate: 290 cfm
  • Inlet Size (Combined): 3/4 in NPT
  • Minimum Operating Temperature: 23 Degrees F
  • Air Outlet Gender: Female
  • Air Outlet Size: 3/4 in
  • Maximum Operating Pressure: 250 psi
  • Pressure Control Range (Combined): 0 psi to 140 psi
  • For Substance Type: Air
  • For Fluid Type: Air
  • Overall Depth: 4 1/8 in
  • Adjustment Mechanism: Knob
  • Modular Connection: Modular Connection
  • Pressure Gauge Port Size: 1/8 in
  • System Location: Air Line
  • Pressure Gauge Included: No
  • Sight Gauge Included: No
  • Air Inlet Size: 3/4 in
  • Air Outlet Type: NPT
  • Maximum Operating Temperature: 140 Degrees F
  • Regulator Body Material: Aluminum or Zinc
  • Air Inlet Gender: Female
  • Maximum Regulated Pressure: 140 psi
  • Minimum Regulated Pressure: 0 psi
  • Country of Origin (subject to change): Korea, Republic of

Description

General Purpose Air Regulator, Pipe Size - Regulators 3/4 in, Max. Flow - Regulators 293 cfm, Max. Inlet Pressure - Regulators 250 psi, Max. Temp. - Regulators 140 Degrees F, Adjustment Range - Regulators 0 to 140 psi, Standard Adjustment Knob, 1/8 in NPT Gauge Port, 3000 Series, Balanced Valve Design, Overall Height - Regulators 7.25 in, Overall Width - Regulators 4.09 in, Overall Length 3.25 in, Body Material Aluminum, Includes Panel Nut
