Aro

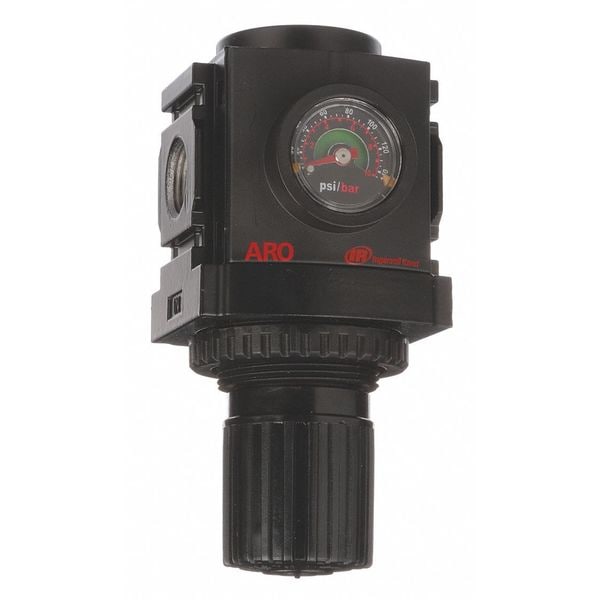

Air Regulator, 3/8 In NPT, 113 cfm, 250 psi

product price: $63.69
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size - Regulators 3/8 in
  • Max. Inlet Pressure - Regulators 250 psi
  • Adjustment Range - Regulators 0 to 140 psi
  • Max. Temp. - Regulators 140 Degrees F
  • Overall Height - Regulators 4.81 in
See all product information

Product Information

Dimensions

Pipe Size - Regulators 3/8 in
Overall Height - Regulators 4.81 in
Overall Width - Regulators 2.25 in
Overall Width (Regulators) 2.25"
Pipe Size (Regulators) 3/8"
Overall Length 2.75 in
Overall Height (Regulators) 4.81"
Overall Width 2 11/16 in
Pressure Gauge Port Size 3/8 in
Overall Height 4 3/4 in
Air Outlet Size 3/8 in
Air Inlet Size 3/8 in
Overall Depth 2 11/16 in
Length 2.7"
Height 4.8"
Width 2.2"

Details

Item Compressed Air Regulator
Max. Inlet Pressure - Regulators 250 psi
Adjustment Range - Regulators 0 to 140 psi
Max. Temp. - Regulators 140 Degrees F
Gauge Port 3/8 in NPT
Body Material Aluminum
Max. Flow - Regulators 113 cfm
Includes Gauge Component, Panel Nut
Adjustment Range (Regulators) 0 to 140 psi
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Max. Flow (Regulators) 113 cfm
Max. Inlet Pressure (Regulators) 250 psi
Valve Design Balanced
Max. Temp. (Regulators) 140 Degrees F
Series 1500
Adjustment Knob Standard
Maximum Operating Pressure 250 psi
Number of Air Outlets 1
Number of Air Inlets 1
Maximum Operating Temperature 140 Degrees F
Air Inlet Type NPT
Modular Connection Modular Connection
Maximum Regulated Pressure 140 psi
Pressure Drop 33 psi
Regulator Type Relieving
Minimum Regulated Pressure 0 psi
Air Outlet Gender Female
For Substance Type Air
Air Outlet Type NPT
Pressure Gauge Included Yes
Maximum Flow Rate 113 cfm
System Location Air Line
Adjustment Mechanism Knob
Air Inlet Gender Female
Pressure Gauge Port Type NPT
For Fluid Type Air
Minimum Operating Temperature 23 Degrees F
Type Aluminum
Max. Pressure 250 psi

Description

Compressed Air Regulator, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 113 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 140 Degrees F, Pressure Gauge Included Yes, Adjustment Mechanism Knob, Overall Width 2 11/16 in, System Location Air Line, Series 1500, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Aluminum, For Fluid Type Air, For Substance Type Air, Includes Gauge Component, Panel Nut
