Aro

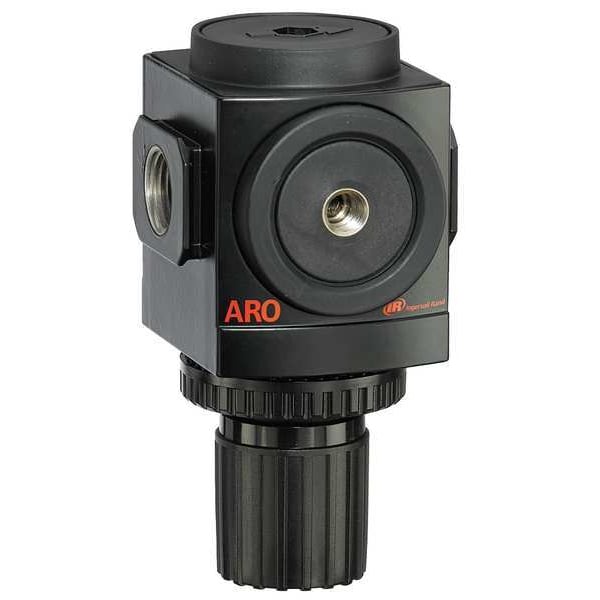

Air Regulator, 3/8 In NPT, 179 cfm, 250 psi

product price: $60.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes Panel Nut
  • Max. Pressure 250 psi
  • Overall Height 5 1/2 in
  • Overall Width 3 1/8 in
  • Max. Temp. (Regulators) 140 Degrees F
See all product information

Product Information

Dimensions

Overall Height 5 1/2 in
Overall Width 3 1/8 in
Overall Width (Regulators) 3.14"
Pipe Size (Regulators) 3/8"
Overall Width - Regulators 3.14 in
Pipe Size - Regulators 3/8 in
Overall Length 2.75 in
Overall Height - Regulators 5.41 in
Overall Height (Regulators) 5.41"
Air Outlet Size 3/8 in
Overall Depth 3 1/8 in
Air Inlet Size 3/8 in
Pressure Gauge Port Size 1/8 in
Length 2.76"
Height 5.47"
Width 3.15"

Details

Item Compressed Air Regulator
Includes Panel Nut
Max. Pressure 250 psi
Max. Temp. (Regulators) 140 Degrees F
Max. Flow (Regulators) 179 cfm
Max. Flow - Regulators 179 cfm
Max. Inlet Pressure - Regulators 250 psi
Adjustment Range (Regulators) 0 to 140 psi
Series 2000
Adjustment Knob Standard
Max. Temp. - Regulators 140 Degrees F
Max. Inlet Pressure (Regulators) 250 psi
Adjustment Range - Regulators 0 to 140 psi
Valve Design Balanced
Body Material Aluminum
Gauge Port 1/8 in NPT
Compressed Air Regulator Product Grouping General Purpose Air Regulator
System Location Air Line
Modular Connection Modular Connection
Standards ATEX Directive 94/9/EEC or 2014/34/EU, IRITS-1215-197
Air Outlet Type NPT
Air Outlet Gender Female
Pressure Gauge Port Type NPT
Maximum Regulated Pressure 140 psi
Maximum Operating Temperature 140 Degrees F
For Substance Type Air
Air Inlet Type NPT
Maximum Flow Rate 179 cfm
Regulator Type Relieving
Air Inlet Gender Female
Sight Gauge Included No
For Fluid Type Air
Duty Rating Heavy Duty
Adjustment Mechanism Knob
Minimum Regulated Pressure 0 psi
Adjustment Mechanism Material Acetal
Maximum Operating Pressure 250 psi
Pressure Gauge Included No
Minimum Operating Temperature 23 Degrees F
Type Aluminum

Description

Compressed Air Regulator, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 179 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 140 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 3 1/8 in, System Location Air Line, Series 2000, Adjustment Mechanism Material Acetal, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Aluminum, Duty Rating Heavy Duty, For Fluid Type Air
