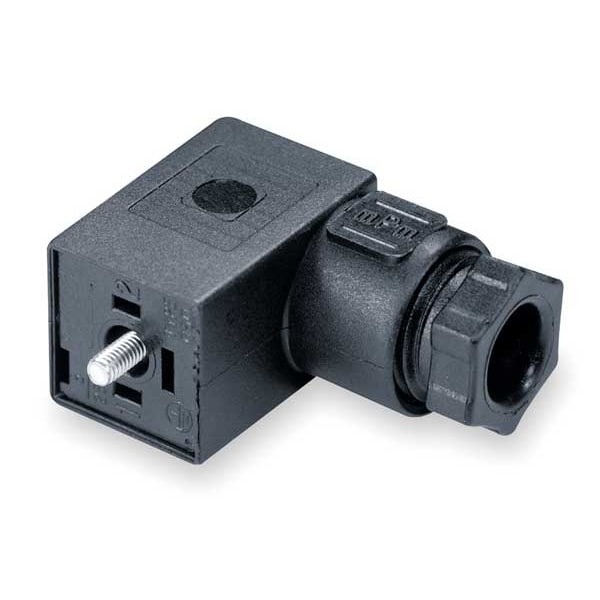

Aro Coil Connector, 120 Vac CHL6-120 - main

Coil Connector, 120 Vac

  • Mfr # CHL6-120

  • Zoro # G1478827

product price: $30.19
/ea

Key Features

Voltage
120V AC
Lead Type
Molded Wire
Lead Length (In.)
39 in
Standards
NEMA 4
Strain Relief
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CHL6-120
Zoro #
G1478827
UPC #
-
Country of Origin
United States

Dimensions

Lead Length (In.)
39 in
Length (In.)
40 in
Height (In.)
0.56 in
Width (In.)
1 in
Overall Length
40 in
For Coil Size
18 mm
Overall Height
9/16 in
Lead Length
39 in
Overall Width
1 in

Details

Item
Solenoid Coil Connector
Voltage
120V AC
Lead Type
Molded Wire
Standards
NEMA 4
Strain Relief
Yes
Indicating Light
Yes
For Use With
1/8 in Port 18mm Compact Valves
Coil Termination
DIN 43650C
Includes Leads
Leads Included
Operating Temperature - Maximum
194 Degrees F
Includes Light
Indicator Light Included
Plug Type
3 Pin
Compatible Brand
ARO
IP Rating
IP67
Strain Relief Connection
Strain Relief
Operating Temperature - Minimum
-13 Degrees F
Connection Type
Molded Wires
Compatible Manufacturer Model Number
M812SD-000-N, M812SD-120-A, M812SS-000-N, M812SS-120-A, M813SD-000-N, M813SD-120-A, M817SD-000-N, M817SD-120-A, M819SD-000-N, M819SD-120-A, M819SS-000-N, M819SS-120-A, M81ASD-000-N
DIN Coil Termination
DIN 43650 Form C
Compatible Series
Sierra 18
Product Type
Solenoid Coil Connector

Description

Solenoid Coil Connector, Indicating Light Yes, Voltage 120V AC, Lead Type Molded Wire, Standards NEMA 4, For Use With 1/8 in Port 18mm Compact Valves, Coil Termination DIN 43650C, Strain Relief Yes, Height (In.) 0.56 in, Length (In.) 40 in, Width (In.) 1 in, Lead Length (In.) 39 in, Solenoid Coil Connector
