Aro

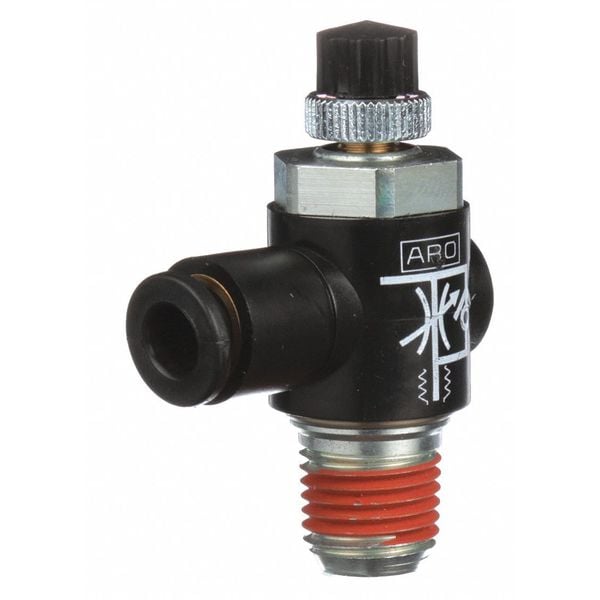

Cylder Port Flow Control, 1/4, MNPT xTube

original price: $48.45
5% off
new price: $45.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Style Elbow
  • Valve Port Size 1/4 in
  • Body Material Stainless Steel
  • Connection MNPT x Tube
  • Valve Tube Size 1/4 in
See all product information

Product Information

Dimensions

Valve Port Size 1/4 in
Valve Tube Size 1/4 in
Pipe Size 1/4"
Valve Body Size 2/3 in
Tube Size 1/4"
Air Connection Size 1/4 in
Connection Size 1/4 in

Details

Item Cylinder Port Flow Control Valve
Valve Style Elbow
Body Material Stainless Steel
Connection MNPT x Tube
Connection Type NPT
Valve Flow Out
Body Material - Valves Nickel-Plated Brass
Style Elbow
Pressure Range 15 to 150 psi
Flow Out
Adjustment Knurled
Temp. Range -32 Degrees to 158 Degrees F
Maximum Operating Temperature 158 Degrees F
Maximum Flow Rate 23 cfm
Air Connection Type Tube
Body Material Finish Nickel Plated
Metering Direction Meter Out
Fitting Style Elbow
Minimum Operating Temperature -32 Degrees F
Adjustment Type Knurled
Minimum Operating Pressure 14.5 psi
Maximum Operating Pressure 145 psi
Connection Gender Male

Description

Cylinder Port Flow Control Valve, Adjustment Type Knurled, Valve Body Size 2/3 in, Air Connection Size 1/4 in, Connection Type NPT, Connection Gender Male, Connection Size 1/4 in, Air Connection Type Tube, Metering Direction Meter Out, Body Material Stainless Steel, Maximum Operating Pressure 145 psi, Minimum Operating Pressure 14.5 psi, Maximum Flow Rate 23 cfm, Minimum Flow Rate Not Applicable, Fitting Style Elbow, Body Material Finish Nickel Plated, Maximum Operating Temperature 158 Degrees F
