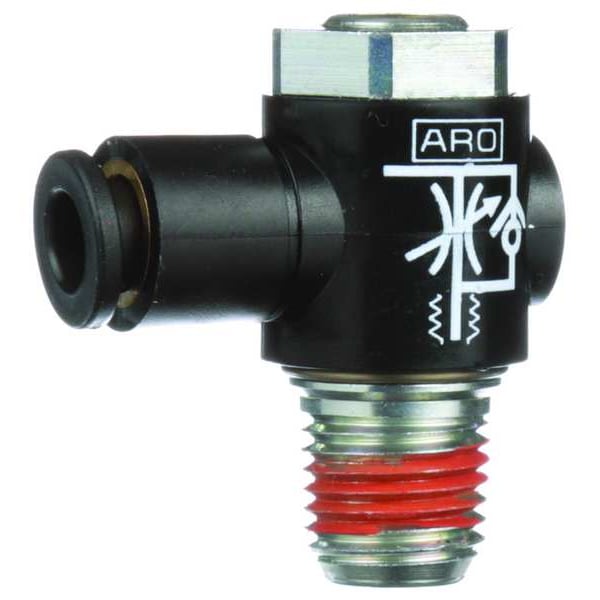

Cylder Port Flow Control, 5/32 TubeNo 10-32

  • Mfr # 119309-103

  • Zoro # G1650205


product price: $36.79
/ea

Key Features

Body Material
Stainless Steel
Style
Elbow
Flow
Out
Pressure Range
15 to 150 psi
Valve Port Size
10-32" UNF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
119309-103
Zoro #
G1650205
UPC #
-
Country of Origin
United States

Dimensions

Valve Port Size
10-32" UNF
Tube Size
5/32"
Valve Tube Size
5/32 in
Pipe Size
10-32 UNF
Valve Body Size
3/8 in
Air Connection Size
5/32 in
Connection Size
10-32

Details

Item
Cylinder Port Flow Control Valve
Body Material
Stainless Steel
Style
Elbow
Flow
Out
Pressure Range
15 to 150 psi
Adjustment
Screw
Temp. Range
-32 Degrees to 158 Degrees F
Connection
NPT x Tube
Valve Flow
Out
Body Material - Valves
Nickel-Plated Brass
Valve Style
Elbow
Connection Type
UN
Air Connection Type
Tube
Maximum Flow Rate
24.7 cfm
Minimum Operating Pressure
14.5 psi
Fitting Style
Elbow
Adjustment Type
Screwdriver Slot, Thumb Screw
Maximum Operating Temperature
158 Degrees F
Body Material Finish
Nickel Plated
Minimum Operating Temperature
-32 Degrees F
Connection Gender
Female
Maximum Operating Pressure
145 psi
Metering Direction
Meter Out

Description

Cylinder Port Flow Control Valve, Adjustment Type Screwdriver Slot, Thumb Screw, Valve Body Size 3/8 in, Air Connection Size 5/32 in, Connection Type UN, Connection Gender Female, Connection Size 10-32, Air Connection Type Tube, Metering Direction Meter Out, Body Material Stainless Steel, Maximum Operating Pressure 145 psi, Minimum Operating Pressure 14.5 psi, Maximum Flow Rate 24.7 cfm, Minimum Flow Rate Not Applicable, Fitting Style Elbow, Body Material Finish Nickel Plated
