Aro

Filter/Regulator, 6.20 In. H, 1.60 In. W

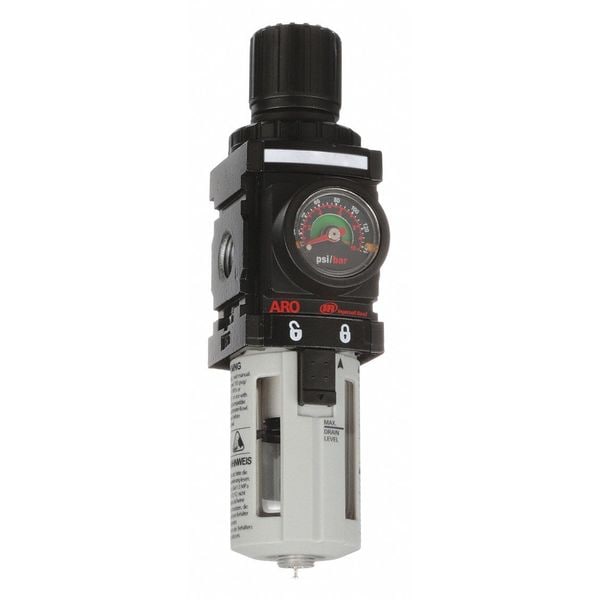

Aro Filter/Regulator, 6.20 In. H, 1.60 In. W P39124-600
Tap to zoom
Hover or click to zoom
$49.27
  • Item - Filter-Regulators: Filter-Regulator
  • Connection Size - Air Treatment: 1/4 in NPT
  • Filter Rating - Air Treatment: 5 micron
See full product details
Orders over $75 ship free.

Total: $49.27

Aro #P39124-600 Specifications

  • Item - Filter-Regulators: Filter-Regulator
  • Connection Size - Air Treatment: 1/4 in NPT
  • Filter Rating - Air Treatment: 5 micron
  • Max. Incoming Pressure - Air Treatment: 150 psi
  • Max. Flow - Air Treatment: 47 cfm
  • Adjustment Range - Air Treatment: 0 to 140 psi
  • Bowl Material - Air Treatment: Polycarbonate
  • Size - Air Treatment: Compact
  • Bowl Size - Air Treatment: 0.5 oz
  • Max. Temp.: 125 Degrees F
  • Adjustment Range: 0 to 140 psi
  • Bowl Size: 0.5 oz.
  • Pipe Size: 1/4" NPT
  • Bowl Material: Polycarbonate
  • Overall Height: 6.2 in
  • Drain Type: Manual
  • Max. Pressure: 150 psi
  • Adjustment Knob: Standard
  • Gauge Port Size: 1/8 in
  • For Removal Of: Oil, Particles, Water
  • Includes: Gauge, Panel Nut
  • Overall Width: 1.6 in
  • Max. Flow: 47 cfm
  • Filter Rating: 5 micron
  • Item: Filter-Regulator
  • Differential Pressure Indicator Included: Yes
  • Adjustment Mechanism: Knob
  • For Substance Type: Oil, Particles, Water
  • Regulator Type: Relieving
  • Maximum Flow Rate: 47 cfm
  • Pressure Control Range (Combined): 0 psi to 140 psi
  • Pressure Gauge Included: Yes
  • Air Inlet Size: 1/4 in
  • Maximum Operating Temperature: 125 Degrees F
  • Maximum Operating Pressure: 150 psi
  • For Fluid Type: Oil, Particles, Water
  • Modular Connection: Modular Connection
  • Drain Part Compatibility: 104298
  • Body Material: Aluminum
  • Minimum Operating Temperature: 23 Degrees F
  • Inlet Size (Combined): 1/4 in NPT
  • Number of Air Inlets: 1
  • Pressure Gauge Port Type: NPT
  • Filter Bowl Capacity: 0.5 oz
  • Series: 1000
  • Pressure Drop: 33 psi
  • Drain Included: Yes
  • Air Outlet Type: NPT
  • Air Outlet Size: 1/4 in
  • System Location: Air Line
  • Minimum Regulated Pressure: 0 psi
  • Filter Bowl Guard Included: Yes
  • Number of Air Outlets: 1
  • Filter Bowl Material: Plastic
  • Maximum Regulated Pressure: 140 psi
  • Filter Element Material: Polyethylene
  • Overall Depth: 2 15/16 in
  • Air Inlet Type: NPT
  • Pressure Gauge Port Size: 1/8 in
  • Country of Origin (subject to change): Korea, Republic of

Description

Filter-Regulator, Connection Size - Air Treatment 1/4 in NPT, Filter Rating - Air Treatment 5 micron, Max. Incoming Pressure - Air Treatment 150 psi, Max. Flow - Air Treatment 47 cfm, Adjustment Range - Air Treatment 0 to 140 psi, Bowl Material - Air Treatment Polycarbonate, Size - Air Treatment Compact, Bowl Size - Air Treatment 0.5 oz, Max. Temp. 125 Degrees F, Gauge Port Size 1/8 in, Standard Adjustment Knob, Drain Type Manual, Overall Height 6.2 in, Overall Width 1.6 in
