  11. Filter/Regulator, 8.15 In. H, 2.20 In. W
Shop All Filters & Regulators
Aro

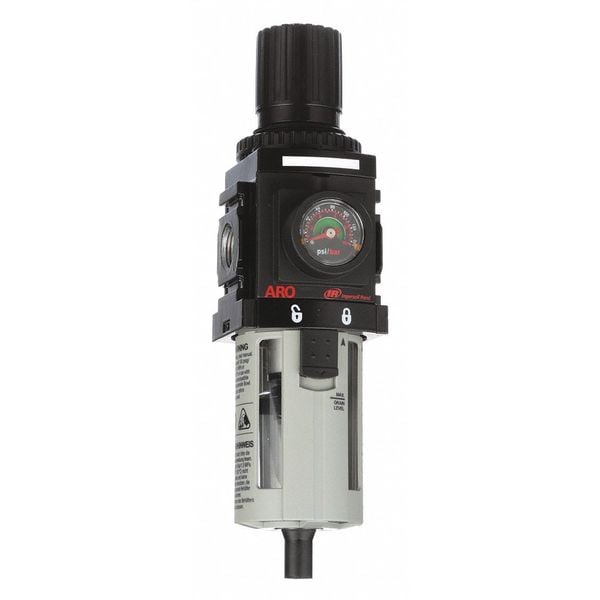

Filter/Regulator, 8.15 In. H, 2.20 In. W

product price: $110.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 3/8 in NPT
  • Filter Rating - Air Treatment 5 micron
  • Max. Incoming Pressure - Air Treatment 150 psi
  • Max. Flow - Air Treatment 90 cfm
  • Adjustment Range - Air Treatment 0 to 140 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 3/8 in NPT
Size - Air Treatment Subcompact
Bowl Size - Air Treatment 1.3 oz
Pipe Size 3/8" NPT
Bowl Size 1.3 oz.
Gauge Port Size 1/8 in
Overall Height 8 3/16 in
Overall Width 2 1/4 in
Air Inlet Size 3/8 in
Air Outlet Size 3/8 in
Pressure Gauge Port Size 1/8 in
Overall Depth 3 5/16 in

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 5 micron
Max. Incoming Pressure - Air Treatment 150 psi
Max. Flow - Air Treatment 90 cfm
Adjustment Range - Air Treatment 0 to 140 psi
Bowl Material - Air Treatment Polycarbonate
Max. Pressure 150 psi
Includes Gauge, Panel Nut
Adjustment Range 0 to 140 psi
Drain Type Manual
For Removal Of Oil, Particles, Water
Max. Flow 90 cfm
Bowl Material Polycarbonate
Adjustment Knob Standard
Max. Temp. 125 Degrees F
Filter Rating 5 micron
Item Filter-Regulator
Filter Element Material Polyethylene
Series 1500
Pressure Drop 33 psi
Minimum Regulated Pressure 0 psi
Body Material Aluminum
Maximum Regulated Pressure 140 psi
Air Outlet Type NPT
Drain Included Yes
Maximum Operating Temperature 125 Degrees F
Filter Bowl Material Plastic
Air Inlet Type NPT
For Fluid Type Oil, Particles, Water
Filter Bowl Capacity 1.3 oz
Drain Part Compatibility 104425
Number of Air Inlets 1
System Location Air Line
Minimum Operating Temperature 23 Degrees F
Pressure Gauge Included Yes
Maximum Flow Rate 90 cfm
Regulator Type Relieving
Filter Bowl Guard Included Yes
Filter Type Coalescing
Adjustment Mechanism Knob
For Substance Type Oil, Particles, Water
Maximum Operating Pressure 150 psi
Differential Pressure Indicator Included Yes
Number of Air Outlets 1
Pressure Gauge Port Type NPT
Type 1 Piece

Description

Filter-Regulator, Filter Bowl Material Polycarbonate, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 90 cfm, Filter Rating 5 micron, Filter Type Coalescing, Maximum Operating Pressure 150 psi, Drain Type Manual, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 2 1/4 in, Series 1500, Adjustment Mechanism Knob, Air Outlet Size 3/8 in, Air Outlet Type NPT, Differential Pressure Indicator Included Yes, Drain Included Yes, Drain Part Compatibility 104425
