Shop All Filter, Regulator, Lubricator
Aro

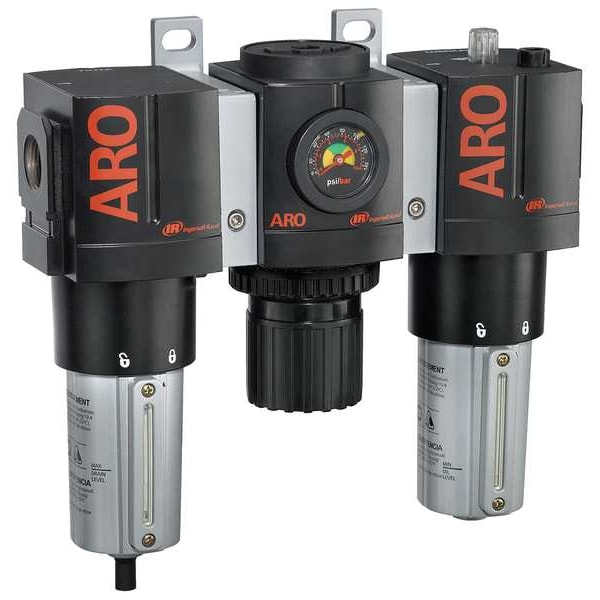

Filter/Regulator/Lub., 1/2" NPT, 150 cfm

product price: $408.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Includes Polycarbonate Bowl with a Protective Guard
  • Pipe Size 1/2" NPT
  • Max. Pressure 250 psi
  • Bowl Size 2.4 oz.
  • Overall Height 9 15/16 in
See all product information

Product Information

Dimensions

Pipe Size 1/2" NPT
Bowl Size 2.4 oz.
Overall Height 9 15/16 in
Connection Size - Air Treatment 1/2 in NPT
Overall Width 8 5/8 in
Gauge Port Size 1/8 in NPT
Size - Air Treatment Subcompact
Bowl Size - Air Treatment 2.4 oz
Pressure Gauge Port Size 1/8 in
Air Inlet Size 1/2 in
Air Outlet Size 1/2 in
Overall Depth 3 9/16 in

Details

Item Filter/Regulator/Lubricator
Includes Polycarbonate Bowl with a Protective Guard
Max. Pressure 250 psi
Number of Pieces 3
Drain Type Manual
Filter Rating 5 micron
Max. Pipe Run - Air Treatment 6 ft
Item - FRL Filter/Regulator/Lubricator
Max. Temp. 175 Degrees F
Max. Incoming Pressure - Air Treatment 250 psi
Filter Rating - Air Treatment 5 micron
Number of Pieces - Air Treatment 3
Max. Flow - Air Treatment 150 cfm
Bowl Material Metal
For Removal Of Oil, Particles, Water
Bowl Material - Air Treatment Metal
Max. Flow 150 cfm
Adjustment Range - Air Treatment 0 to 140 psi
Adjustment Knob Standard
Adjustment Range 0 to 140 psi
Series 2000
Drain Included Yes
Sight Dome Included Yes
Body Material Aluminum
Air Outlet Type NPT
Pressure Gauge Port Type NPT
For Substance Type Air
Lubricator Bowl Capacity 3.7 oz
Minimum Regulated Pressure 0 psi
Adjustment Mechanism Material Acetal
Drain Part Compatibility 104325
Filter Bowl Capacity 2.4 oz
Modular Connection Modular Connection
Adjustment Mechanism Knob
Pressure Gauge Included Yes
Filter Bowl Material Metal
Maximum Operating Temperature 175 Degrees F
Duty Rating Standard Duty
Maximum Flow Rate 150 cfm
Minimum Operating Temperature 23 Degrees F
Lubricator Bowl Material Metal
Seal Material Nitrile
System Location Air Line
Number of Air Inlets 1
Maximum Operating Pressure 250 psi
For Fluid Type Compressed Air
Filter Element Material Polyethylene
Air Inlet Type NPT
Pressure Drop 33 psi
Regulator Type Relieving
For Maximum Pipe Run 6 ft
Maximum Regulated Pressure 140 psi
Number of Air Outlets 1
Type 3 Piece

Description

Filter/Regulator/Lubricator, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 150 cfm, Maximum Operating Pressure 250 psi, Filter Rating 5 micron, Filter Bowl Material Metal, Filter Bowl Capacity 2.4 oz, Lubricator Bowl Capacity 3.7 oz, Drain Type Manual, Overall Width 8 5/8 in, Series 2000, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Aluminum, Drain Included Yes, Drain Part Compatibility 104325
