  11. Filter/Regulator/Lubricator, 208 cfm
Shop All Filter, Regulator, Lubricator
Aro

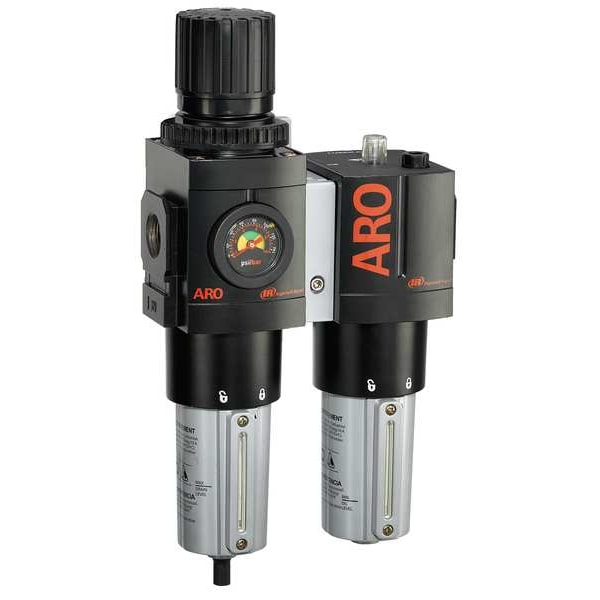

Filter/Regulator/Lubricator, 208 cfm

product price: $497.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1" NPT
  • Max. Pressure 250 psi
  • Bowl Size 5.3 oz.
  • Overall Height 13 5/8 in
  • Number of Pieces 2
See all product information

Product Information

Dimensions

Pipe Size 1" NPT
Bowl Size 5.3 oz.
Overall Height 13 5/8 in
Connection Size - Air Treatment 1 in NPT
Overall Width 7 5/16 in
Size - Air Treatment Jumbo
Bowl Size - Air Treatment 5.3 oz
Gauge Port Size 1/8" NPT
Air Outlet Size 1 in
Air Inlet Size 1 in
Overall Depth 4 5/16 in
Pressure Gauge Port Size 1/8 in

Details

Item Filter/Regulator/Lubricator
Max. Pressure 250 psi
Number of Pieces 2
Drain Type Manual
Filter Rating 5 micron
Bowl Material - Air Treatment Metal with Sight Glass
Number of Pieces - Air Treatment 2
Item - FRL Filter/Regulator/Lubricator
Max. Flow 208 cfm
Bowl Material Metal with Sight Glass
Max. Flow - Air Treatment 208 cfm
Adjustment Range - Air Treatment 0 to 200 psi
Max. Incoming Pressure - Air Treatment 250 psi
Adjustment Range 0 to 140 psi
Adjustment Knob Standard
Filter Rating - Air Treatment 5 micron
Max. Pipe Run - Air Treatment 6 ft
Max. Temp. 175 Degrees F
For Removal Of Oil, Particles, Water
Body Material Aluminum
Series 3000
Sight Dome Included Yes
Drain Included Yes
For Fluid Type Compressed Air
Regulator Type Relieving
For Maximum Pipe Run 6 ft
Air Outlet Type NPT
Number of Air Inlets 1
Maximum Operating Pressure 250 psi
Pressure Gauge Port Type NPT
Modular Connection Modular Connection
Duty Rating Heavy Duty
Seal Material Nitrile
Pressure Gauge Included Yes
Drain Part Compatibility 104450
Filter Bowl Material Metal
Adjustment Mechanism Knob
Minimum Operating Temperature 23 Degrees F
Lubricator Bowl Material Metal
Air Inlet Type NPT
Filter Bowl Capacity 5.3 oz
Lubricator Bowl Capacity 3.2 oz
Maximum Regulated Pressure 200 psi
Pressure Drop 33 psi
Minimum Regulated Pressure 0 psi
For Substance Type Air
System Location Air Line
Maximum Flow Rate 208 cfm
Maximum Operating Temperature 175 Degrees F
Number of Air Outlets 1
Type 2-Pc.

Description

Filter/Regulator/Lubricator, Air Inlet Size 1 in, Air Inlet Type NPT, Maximum Flow Rate 208 cfm, Maximum Operating Pressure 250 psi, Filter Rating 5 micron, Filter Bowl Material Metal, Filter Bowl Capacity 5.3 oz, Lubricator Bowl Capacity 3.2 oz, Drain Type Manual, Overall Width 7 5/16 in, Series 3000, Adjustment Mechanism Knob, Air Outlet Size 1 in, Air Outlet Type NPT, Body Material Aluminum, Drain Included Yes, Drain Part Compatibility 104450, Duty Rating Heavy Duty
