Shop All Filters & Regulators
Aro

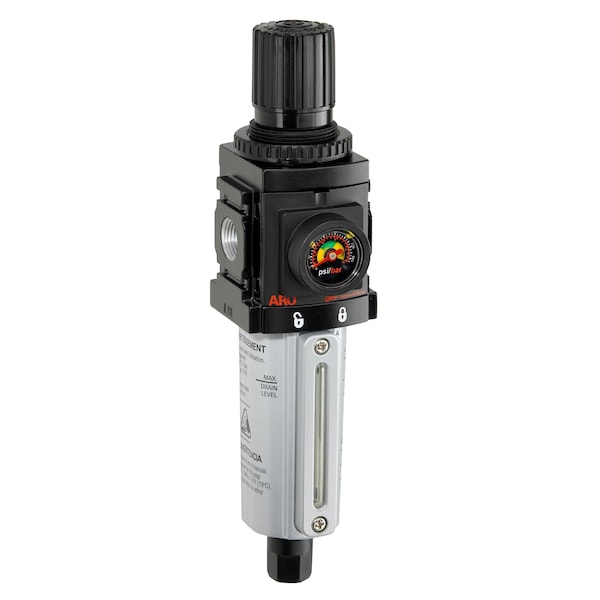

FRL Piggyback, Air Inlet 1/4", NPT, 58 scfm

product price: $131.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Width 4 7/16 in
  • Filter Rating 5 micron
  • Drain Type Automatic
  • Overall Height 6 5/8 in
  • Standards ATEX, IRITS-1215-197
See all product information

Product Information

Dimensions

Overall Width 4 7/16 in
Overall Height 6 5/8 in
Overall Depth 3 5/16 in
Pressure Gauge Port Size 1/8 in
Air Outlet Size 1/4 in
Air Inlet Size 1/4 in

Details

Item FRL Piggyback
Filter Rating 5 micron
Drain Type Automatic
Standards ATEX, IRITS-1215-197
Maximum Operating Temperature 175 Degrees F
Air Inlet Type NPT
Pressure Gauge Included Yes
Filter Type Coalescing
Maximum Regulated Pressure 250 psi
For Fluid Type Compressed Air
Adjustment Mechanism Material Acetal
Maximum Operating Pressure 140 psig
Drain Included Yes
Adjustment Mechanism Knob
Seal Material Nitrile
Regulator Type Relieving
Filter Bowl Capacity 1 oz
System Location Air Line
Air Outlet Type NPT
Adjustment Location Top
Body Material Aluminum
Maximum Flow Rate 58 scfm
Minimum Operating Temperature 23 Degrees F
Pressure Drop 33 psi
Modular Connection Modular Connection
Series Series 1500
For Substance Type Air
Minimum Operating Pressure 0 psig
Filter Bowl Guard Material Nylon
Filter Bowl Material Metal with Sight Glass

Description

FRL Piggyback, Filter Bowl Material Metal with Sight Glass, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 58 scfm, Filter Rating 5 micron, Filter Type Coalescing, Maximum Operating Pressure 140 psig, Drain Type Automatic, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 4 7/16 in, Series Series 1500, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/4 in, Air Outlet Type NPT, Drain Included Yes
