Aro

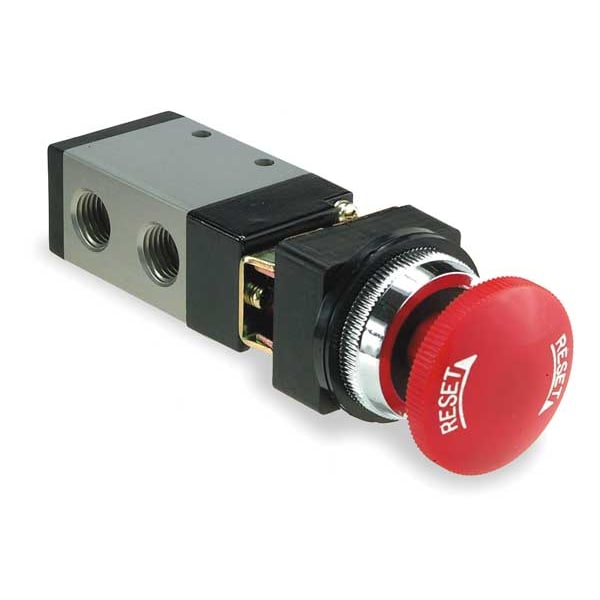

Manual Air Control Valve, 3-Way, 1/4in NPT

Aro Manual Air Control Valve, 3-Way, 1/4in NPT M252HS-15
Tap to zoom
Hover or click to zoom
$75.53
  • Item: Manual Air Control Valve
  • Pipe Size: 1/4"
  • Valve Ways and Positions: 3-Way/2-Position
See full product details
This item ships free.
Total: $75.53

Aro #M252HS-15 Specifications

  • Item: Manual Air Control Valve
  • Pipe Size: 1/4"
  • Valve Ways and Positions: 3-Way/2-Position
  • Max. Pressure: 150 psi
  • Valve Port Size: 1/4 in
  • Connection: NPT
  • Body Material: Aluminum
  • Valve Actuator / Return: Button / Spring with Detent
  • Max. CFM - Valves: 26.0
  • Valve Max. Pressure Rating: 150 psi
  • Valve Temp. Range: 32 Degrees to 160 Degrees F
  • Series: MaxAir
  • Actuator/Return: Button/Spring with Detent
  • Overall Length: 1 35/64 in
  • Overall Width: 1 35/64 in
  • Temp. Range: 32 Degrees to 160 Degrees F
  • CFM: 26
  • Overall Height: 5 1/64 in
  • Air Valve Type: 3-Way, 2-Position
  • Normally Open / Normally Closed: Normally Closed
  • Coefficient of Volume: 0.7
  • Country of Origin (subject to change): Taiwan, Province of China

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Button / Spring with Detent, Max. CFM - Valves 26.0, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 160 Degrees F, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.7, Body Material Aluminum, Overall Length 1 35/64 in, Overall Height 5 1/64 in, Overall Width 1 35/64 in, Series MaxAir, Manual Air Control Valve
