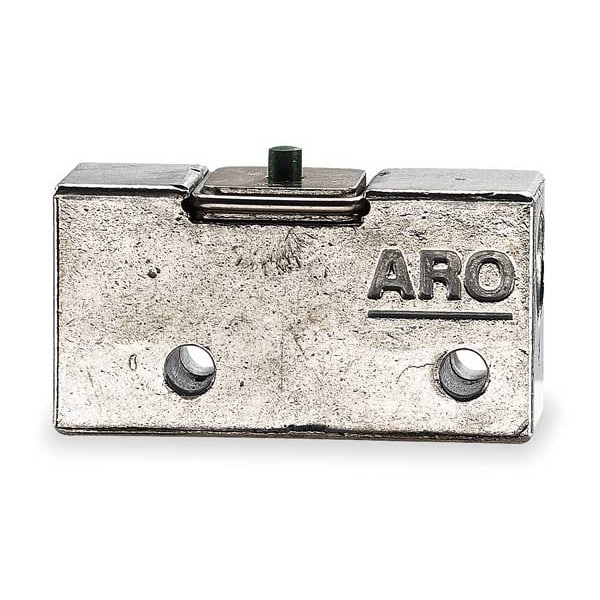

Manual Air Control Valve, 3-Way, 1/8in NPT

  • Mfr # 209-C
  • Zoro # G3361775
product price:
$
41.88
/ea

Key Features

Actuator/Return
Pin Plunger/Spring
Coefficient of Volume
0.2
Number of Ways
Two-Way
Series
200
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
209-C
Zoro #
G3361775
UPC #
-
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Pin Plunger/Spring
Coefficient of Volume
0.2
Number of Ways
Two-Way
Series
200
Number of Positions
Two-Position
CFM
7.5
Max. CFM - Valves
7.5 cfm
Air Valve Type
3-Way, 2-Position
Valve Temp. Range
32 Degrees to 160 Degrees F
Valve Max. Pressure Rating
150 psi
Connection
NPT
Valve Actuator / Return
Pin Plunger / Spring
Temp. Range
32 Degrees to 160 Degrees F
Valve Ways and Positions
3-Way/2-Position
Max. Pressure
150 psi
Application
Gates, Slides
Body Material
Die Cast Zinc
Seal Material
Buna-N
Operating Temperature - Minimum
32 Degrees F
Exhaust Port Connection Gender
Female
Actuation Force @ 125 psi
3.56 lb
Body Style
Inline
Vacuum Rating
Vacuum Operable
Exhaust Port Connection Type
Threaded
Operating Pressure - Maximum
150 psi
Return Action
Spring Return
Flow Rate - Maximum
7.5 scfm
Force @ 50 psi
57 oz
Number of Ports
3
Fail Position
Open/Closed
For Media
Air
Actuator Type
Plunger
Valve Port Connection Type
NPT
Valve Action
Normally Open/Normally Closed
Operating Temperature - Maximum
160 Degrees F
Valve Type
Spool
Valve Port Connection Gender
Female
Actuator Color
Gray
Coefficient of Volume (Cv)
0.195
Product Type
Manual Air Control Valve
Operating Pressure - Minimum
30 psi
Spool Material
Stainless Steel

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Pin Plunger / Spring, Max. CFM - Valves 7.5 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 160 Degrees F, Center Position Not Applicable, Coefficient of Volume 0.2, Overall Length 1 3/4 in, Overall Height 1 3/16 in, Overall Width 11/16 in, Series 200, Manual Air Control Valve
