Shop ARO

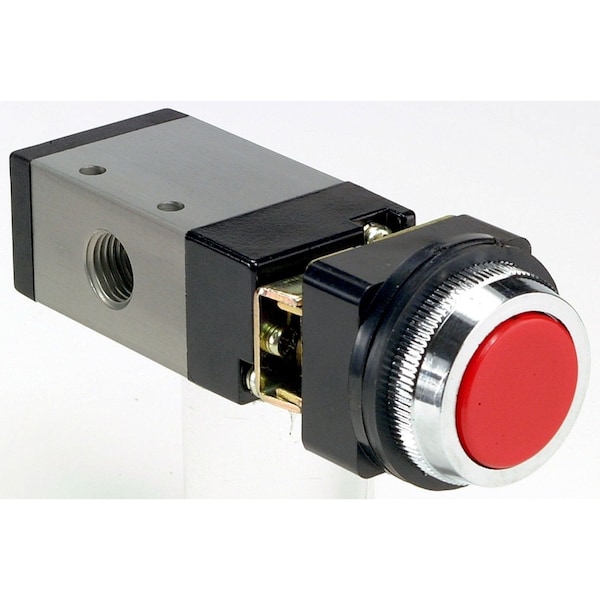

Manual Air Control Valve, Button, Red

  • Mfr # M252HS-13
  • Zoro # G8375772
product price:
$
101.99
/ea
Free Shipping & Returns

Key Features

Connection
NPT
Valve Type
Spool
Body Material
Aluminum
Series
M Series
Valve Max. Pressure Rating
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M252HS-13
Zoro #
G8375772
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Manual Air Control Valve
Connection
NPT
Valve Type
Spool
Body Material
Aluminum
Series
M Series
Valve Max. Pressure Rating
150 psi
Valve Ways and Positions
3-Way
Max. CFM - Valves
26 scfm
Valve Temp. Range
30 Degrees to 160 Degrees F
Valve Actuator / Return
Palm with Guard Spring Return
Actuator Color
Red
Coefficient of Volume (Cv)
0.7
Number of Ports
3
Operating Temperature - Maximum
160 Degrees F
Valve Action
Normally Open/Normally Closed
For Media
Compressed Air
Operating Pressure - Maximum
150 psi
Exhaust Port Connection Gender
Female
Flow Rate - Maximum
26 scfm
Fail Position
Open/Closed
Exhaust Port Connection Type
Threaded
Valve Port Connection Gender
Female
Number of Ways
Three-Way
Operating Pressure - Minimum
0 psi
Return Action
Spring Return
Force @ 50 psi
8.5 lb
Actuation Force @ 125 psi
8.5 lb
Actuator Type
Button
Vacuum Rating
Vacuum Operable
Valve Port Connection Type
NPT
Operating Temperature - Minimum
32 Degrees F
Number of Positions
Two-Position
Body Style
Panel-Mounted
Product Type
Manual Air Control Valve

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Palm with Guard Spring Return, Max. CFM - Valves 26 scfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 30 Degrees to 160 Degrees F, Center Position Not Applicable, Body Material Aluminum, Series M Series
